6GK59230PS002AA6

Power supply SCALANCE PSP9230PoE, 230 V AC / 54 V DC and 24 V DC

Manufacturer's No: 6GK5923-0PS00-2AA6     Manufacturer: Siemens
Power supply SCALANCE PSP9230PoE, 230 V AC / 54 V DC and 24 V DC

Availability On Request

£804.70

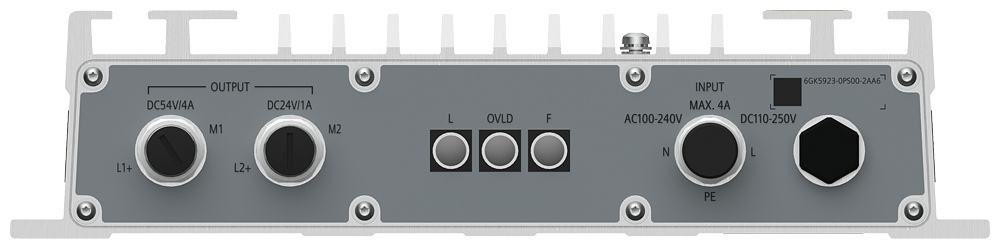

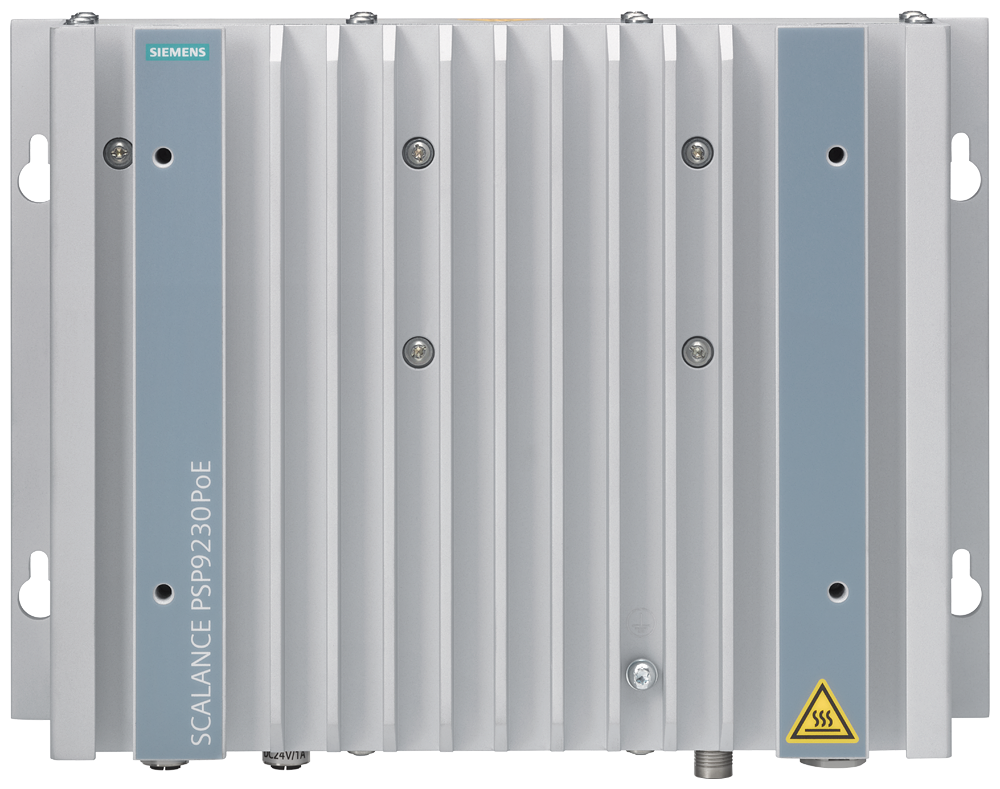

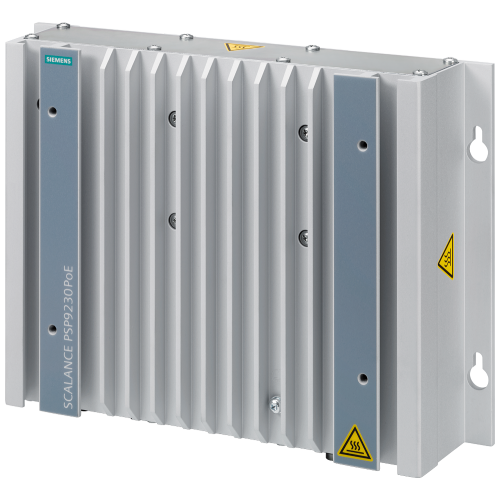

  • SCALANCE PSP9230PoE power supply
    • Input: 100-240 V AC, 110-250 V DC
    • Output: 24 V DC/1 A + 54 V DC/4 A
    • IP65 rated for power-over-Ethernet (PoE)
    • Allows mounting of SCALANCE XP208 or XP216
    • Operation possible outside control cabinet
    • Includes two adapter plates
    • Optional accessories available:
      • M12 plug (S-coded): 6GK1907-0DC00-6AA4
      • M12 plug-in cables pre-assembled (L-coded) in lengths from 0.5 m to 15 m


Product

Manufacturer Material ID -
6GK5923-0PS00-2AA6
Net Weight -
4.50kg

Additional Product Information

Commodity Code -
85044083
Country of Origin -
DE
UNSPSC -
32121704

Technical Specification

Degree of protection (IP rating) -
IP65
Direct mounting possible -
Max. output current 1 -
4 Ampere
Nominal value output current 1 -
3 Ampere
Nominal value output voltage 1 -
24 Volt
Nominal value output voltage 2 -
54 Volt
Power output -
224 Watt
Short-circuit-proof -
Wall mounting possible -

Availability On Request

£804.70
