6MF28340AA00

AI-8340 Analog Input (4xU(250V), 2xDO)

Manufacturer's No: 6MF2834-0AA00     Manufacturer: Siemens

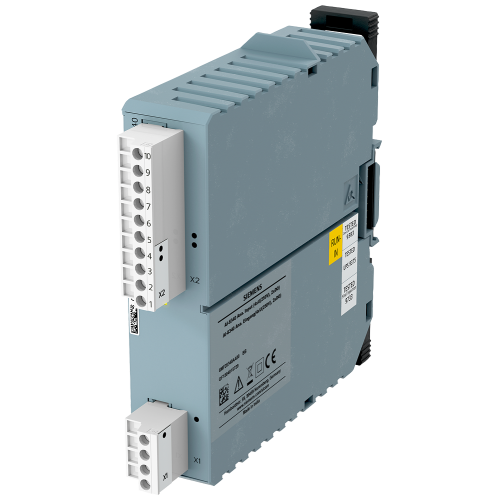

AI-8340 Analog Input (4xU(250V), 2xDO)

Availability On Request

POA
  • AI-8340 Analog Input Module
    • 4 voltage inputs (up to 250V AC)
    • 2 digital outputs for Synchro Check
    • Accuracy: 0.2% for measured values, 0.5% for calculated values
    • Frequency range: 50Hz, 16.7Hz, 60Hz
    • Compatible with SICAM A8000


Product

Manufacturer Material ID -
6MF2834-0AA00
Net Weight -
0.53kg

Additional Product Information

Commodity Code -
90303370
Country of Origin -
IN
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
32151705

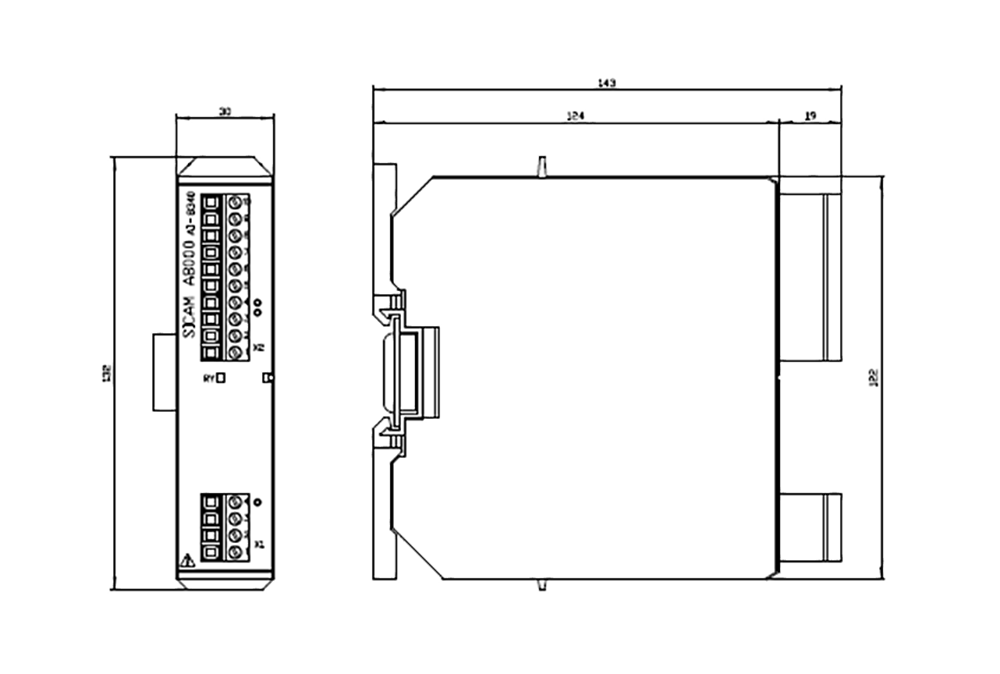

Technical Specification

Analogue inputs configurable -
Depth -
124 Millimetre
Height -
132 Millimetre
Input, voltage -
Number of analogue inputs -
4
Resolution of the analogue inputs -
16 Bit
Width -
30 Millimetre
