6MF28533AA00

CI-8533 SICAM I/O Remote 110-220VDC F/O

Manufacturer's No: 6MF2853-3AA00     Manufacturer: Siemens

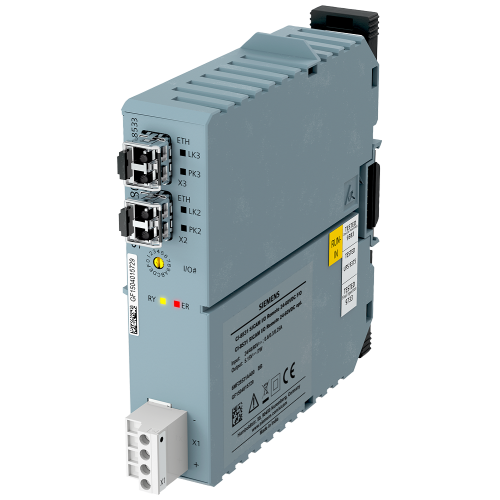

CI-8533 SICAM I/O Remote 110-220VDC F/O

Availability On Request

POA
  • Model: CI-8533 SICAM I/O Remote
  • Ethernet expansion module with two fibre-optic interfaces
  • Designed to connect remote SICAM I/Os to SICAM A8000 CP-8050
  • Supports line and ring configurations
  • Integrated power supply (110-220 VDC) for up to 8 I/O modules
  • Supports redundant power supply units (PS-862x or PS-864x)
  • Includes two fibre-optic LC multimode plug-ins
  • Supports distances up to 2km between I/O rows


Product

Manufacturer Material ID -
6MF2853-3AA00
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85423111
Country of Origin -
IN
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
32151705

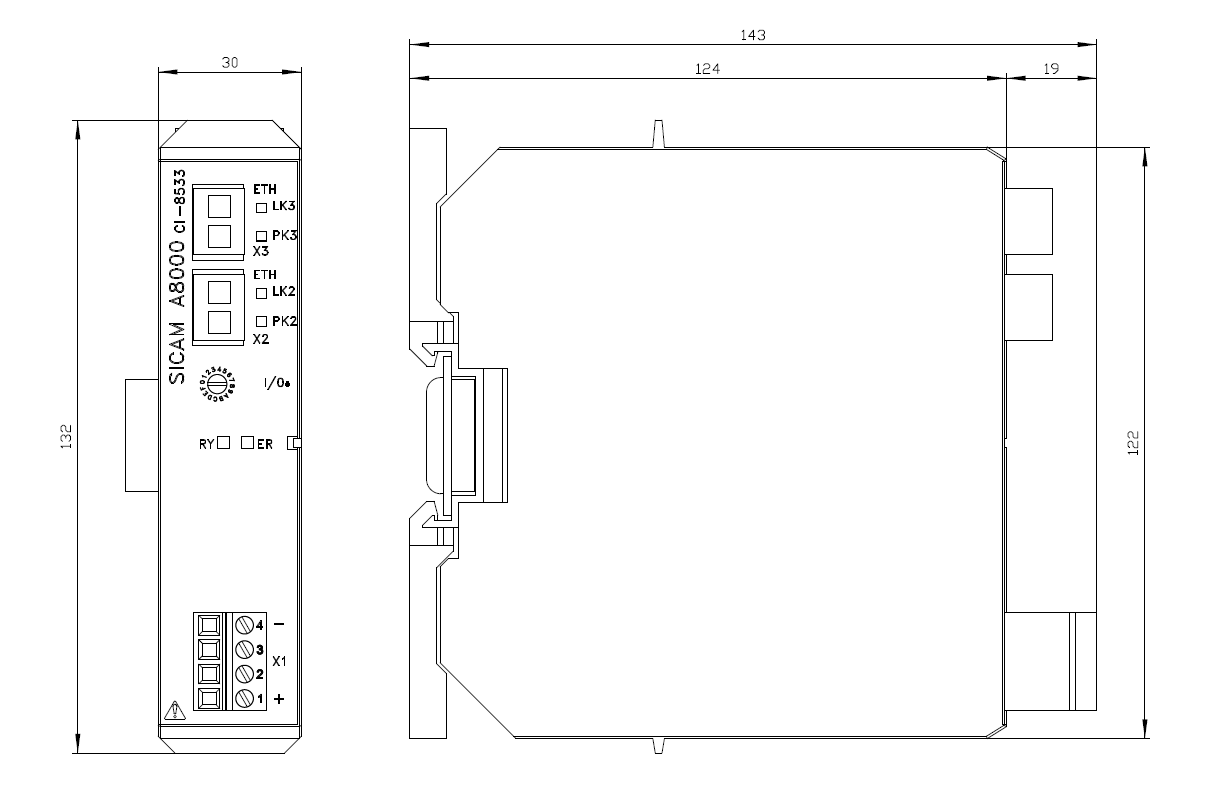

Technical Specification

Depth -
124 Millimetre
Height -
132 Millimetre
Width -
30 Millimetre

Availability On Request

POA
