6SL32110AB230UA1

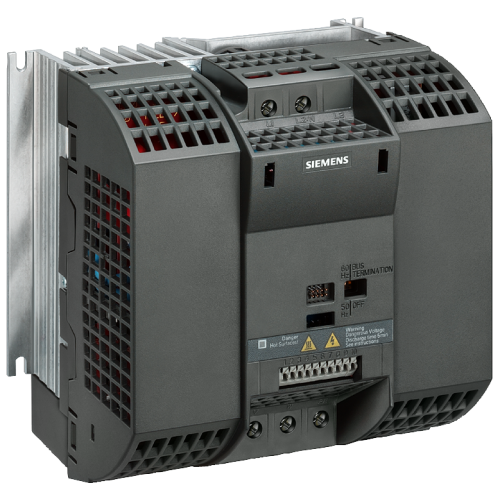

SINAMICS G110-CPM110 AC Drive, unfiltered 200-240V1AC+10/-10% 47-63Hz Analog input CT: 3.0kW; VT: 3.

Manufacturer's No: 6SL3211-0AB23-0UA1     Manufacturer: Siemens
SINAMICS G110-CPM110 AC Drive, unfiltered 200-240V1AC+10/-10% 47-63Hz Analog input CT: 3.0kW; VT: 3.

Availability On Request

POA
  • SINAMICS G110-CPM110 AC Drive
  • Input: 200-240V, 1AC +/-10%, 47-63Hz
  • Analog input: CT 3.0kW, VT 3.0kW
  • CT overload: 150% for 60 seconds
  • Dimensions: 181 x 184 x 152 mm (H x W x D)
  • Degree of protection: IP20
  • Ambient temperature: -10 to +40°C
  • Does not include BOP or RS485 interface
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3211-0AB23-0UA1
Net Weight -
2.04kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
GB
Export Control Regulations -
3A999A / N
Minimum Order Quantity -
1
UNSPSC -
32121705

Technical Specification

Number of analogue outputs -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Mains frequency -
50/60 Hz
Number of interfaces PROFINET -
0
Max. output at linear load at rated output voltage -
3000 Kilowatt
Depth -
152 Millimetre
Height -
181 Millimetre
Mains voltage -
200 Volt
Max. output at quadratic load at rated output voltage -
3 Kilowatt
Max. output frequency -
650 Hertz
Nominal output current I2N -
13.6 Ampere
Number of analogue inputs -
1
Number of digital inputs -
3
Number of digital outputs -
1
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of phases input -
1
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Type of converter -
U converter
Width -
184 Millimetre
With PC connection -

Availability On Request

POA
