6SL32165BE175CV0

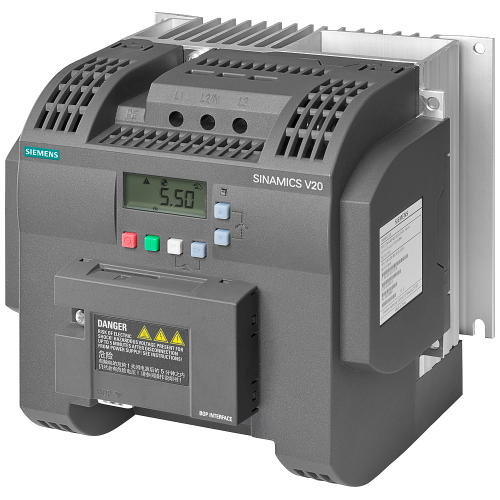

SINAMICS V20, 3 AC 380-480 V, 0,75 kW, IP20 / UL open type, FSA, A

Manufacturer's No: 6SL3216-5BE17-5CV0     Manufacturer: Siemens
SINAMICS V20, 3 AC 380-480 V, 0,75 kW, IP20 / UL open type, FSA, A

Availability On Request

POA
  • Product: SINAMICS V20
  • Voltage: 380-480 V AC
  • Power: 0.75 kW
  • Overload: 150% for 60 sec
  • Input/Output: 4 DI, 2 DO, 2 AI, 1 AQ
  • Fieldbus: USS/MODBUS RTU
  • Integrated filter C3
  • Protection: IP20/UL open
  • Size: 90 x 150 x 115 mm (W x H x D)
  • Flat heat sink design
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3216-5BE17-5CV0
Net Weight -
0.90kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
CN
RoHs Compliance -
Yes
UNSPSC -
39122001

Technical Specification

Number of digital outputs -
-
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Mains frequency -
50/60 Hz
Number of interfaces PROFINET -
0
Application in industrial area permitted -
Depth -
114.5 Millimetre
Height -
150 Millimetre
Integrated breaking resistance -
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
0.75 Kilowatt
Max. output at quadratic load at rated output voltage -
0.75 Kilowatt
Max. output frequency -
550 Hertz
Max. output voltage -
480 Volt
Nominal output current I2N -
2.2 Ampere
Number of analogue inputs -
2
Number of analogue outputs -
1
Number of digital inputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-15 Percentage
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Type of converter -
U converter
Width -
90 Millimetre
