6SL32202YH600CB0

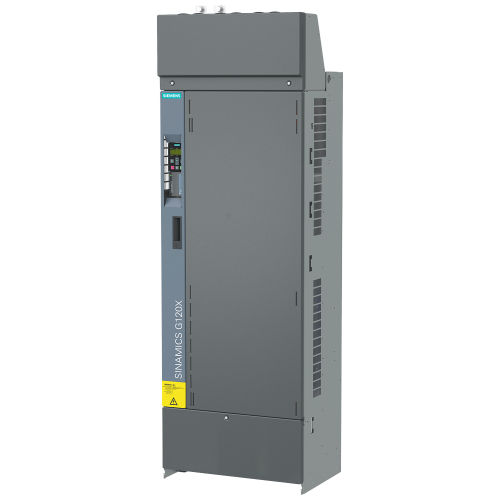

SINAMICS G120X, IP20 / UL open type, FSH, C3, 3 AC 500-690 V, 400,00 kW

Manufacturer's No: 6SL3220-2YH60-0CB0     Manufacturer: Siemens
SINAMICS G120X, IP20 / UL open type, FSH, C3, 3 AC 500-690 V, 400,00 kW

Availability Back Order

£24,353.98
  • Rated power: 400 kW at 135% for 3 sec, 110% for 60 sec, and 100% for 240 sec
  • RFI suppression filter for category C3
  • Input: 3AC 500-690V +/- 10%, 47-63Hz
  • Ambient temperature range: 0 to +45°C
  • Size: FSH
  • Degree of protection: IP20 / UL open type
  • Integrated fieldbus: MODBUS RTU, BACnet MS/TP, USS
  • Basic Operator Panel included
  • IO expansion not included

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3220-2YH60-0CB0
Net Weight -
183.00kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
UNSPSC -
39121601

Technical Specification

Number of digital outputs -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Mains frequency -
60 Hz
Number of interfaces PROFINET -
0
Application in industrial area permitted -
Depth -
393 Millimetre
Height -
1695 Millimetre
Mains voltage -
500 Volt
Max. output at linear load at rated output voltage -
355 Kilowatt
Max. output at quadratic load at rated output voltage -
400 Kilowatt
Max. output frequency -
100 Hertz
Nominal output current I2N -
453 Ampere
Number of analogue inputs -
2
Number of analogue outputs -
1
Number of digital inputs -
6
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
6
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
5
Number of HW-interfaces USB -
0
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Type of converter -
U converter
Width -
548 Millimetre

Availability Back Order

£24,353.98
