6SL32240BE211UA0

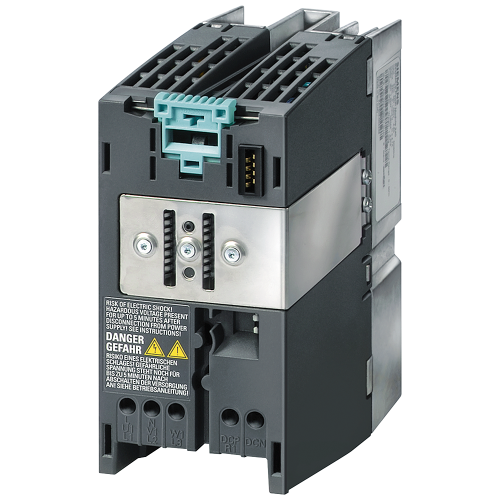

SINAMICS G120 PM 240 Power Module unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10%

Manufacturer's No: 6SL3224-0BE21-1UA0     Manufacturer: Siemens
SINAMICS G120 PM 240 Power Module unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10%

Availability On Request

POA

This product has been superseded by

6SL32101PE143UL1

Please check compatibility before purchasing.

  • Power Module: SINAMICS G120 PM 240
  • Input Voltage: 380-480 V 3 AC +/-10%
  • Integrated braking chopper
  • Power Overload: 1.1 kW at 200% for 3s, 150% for 57s, 100% for 240s
  • Ambient Temperature: -10 to +50°C
  • Dimensions: 173 x 73 x 145 mm (HxWxD)
  • Degree of Protection: IP20
  • Excludes Control Unit and BOP
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3224-0BE21-1UA0
Net Weight -
1.10kg

Additional Product Information

Commodity Code -
85049099
Country of Origin -
GB
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Mains frequency -
UN
Number of interfaces PROFINET -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Depth -
145 Millimetre
Height -
173 Millimetre
Integrated breaking resistance -
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
1.1 Kilowatt
Max. output at quadratic load at rated output voltage -
1.1 Kilowatt
Max. output frequency -
550 Hertz
Nominal output current I2N -
3.1 Ampere
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
10 Percentage
Type of converter -
U converter
Width -
73 Millimetre

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

6SL32101PE143UL1

Please check compatibility before purchasing.
