6SL32240BE230UA0

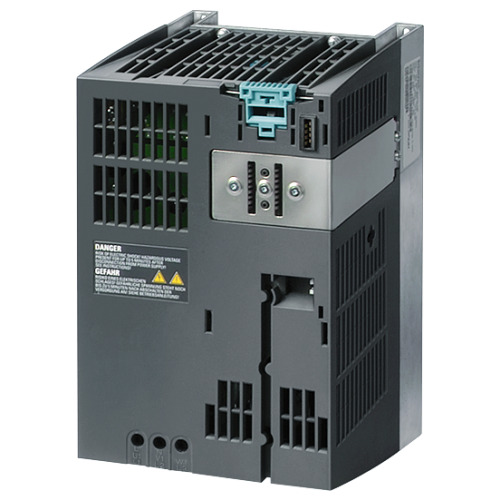

SINAMICS G120 POWER MODULE PM240 WITHOUT FILTER WITH BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47

Manufacturer's No: 6SL3224-0BE23-0UA0     Manufacturer: Siemens
SINAMICS G120 POWER MODULE PM240 WITHOUT FILTER WITH BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47

Availability On Request

POA

This product has been superseded by

6SL32101PE211UL0

Please check compatibility before purchasing.

  • SINAMICS G120 Power Module PM240
  • Voltage: 380-480 V AC, 3-phase
  • Power: 3.0 kW
  • Integrated braking chopper
  • High overload capacity: 200% for 3 seconds, 150% for 57 seconds, 100% for 240 seconds
  • Ambient temperature: -10 to +50°C
  • Dimensions: 270 x 153 x 165 mm (HxWxD)
  • Degree of protection: IP20
  • Does not include Control Unit and BOP
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3224-0BE23-0UA0
Net Weight -
4.08kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
GB
Export Control Regulations -
3A999A / N
Minimum Order Quantity -
1
UNSPSC -
32121705

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Mains frequency -
UN
Number of interfaces PROFINET -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Depth -
165 Millimetre
Height -
270 Millimetre
Integrated breaking resistance -
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
3 Kilowatt
Max. output at quadratic load at rated output voltage -
3 Kilowatt
Max. output frequency -
550 Hertz
Nominal output current I2N -
7.7 Ampere
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
10 Percentage
Type of converter -
U converter
Width -
153 Millimetre

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

6SL32101PE211UL0

Please check compatibility before purchasing.
