6SL33101TE326AA3

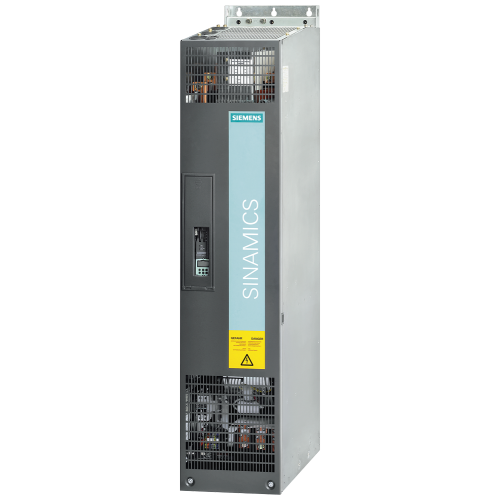

SINAMICS S120 CONVERTER POWER MODULE 3AC 380-480V, 50/60HZ, 260A (132 KW) INTERNAL AIR COOLING FRAME SIZE: CHASSIS SUPPORT OF THE

Manufacturer's No: 6SL3310-1TE32-6AA3     Manufacturer: Siemens
SINAMICS S120 CONVERTER POWER MODULE 3AC 380-480V, 50/60HZ, 260A (132 KW) INTERNAL AIR COOLING FRAME SIZE: CHASSIS SUPPORT OF THE EXTENDED SAFETY I...

Availability On Request

£15,519.21
  • SINAMICS S120 Converter Power Module
  • 3AC, 380-480V, 50/60Hz, 260A (132 kW)
  • Internal air cooling
  • Frame size: Chassis
  • Supports extended safety integrated functions
  • Includes Drive-CLiQ cable and mounting plate for CU310


Product

Manufacturer Material ID -
6SL3310-1TE32-6AA3
Net Weight -
104.00kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
Export Control Regulations -
3A999A / N
UNSPSC -
32121705

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Mains frequency -
UN
Number of interfaces PROFINET -
-
Type of converter -
UN
Number of phases output -
UN
Relative symmetric net voltage tolerance -
- Percentage
Relative symmetric net frequency tolerance -
- Percentage
Max. output voltage -
- Volt
Nominal output current I2N -
- Ampere
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Depth -
356 Millimetre
Height -
1400 Millimetre
Mains voltage -
342 Volt
Max. output at linear load at rated output voltage -
110 Kilowatt
Max. output at quadratic load at rated output voltage -
132 Kilowatt
Max. output frequency -
550 Hertz
Number of phases input -
3
Width -
326 Millimetre

Availability On Request

£15,519.21
Sign in or Register for customer prices.

Additional Information
