6SL33151TE331AA3

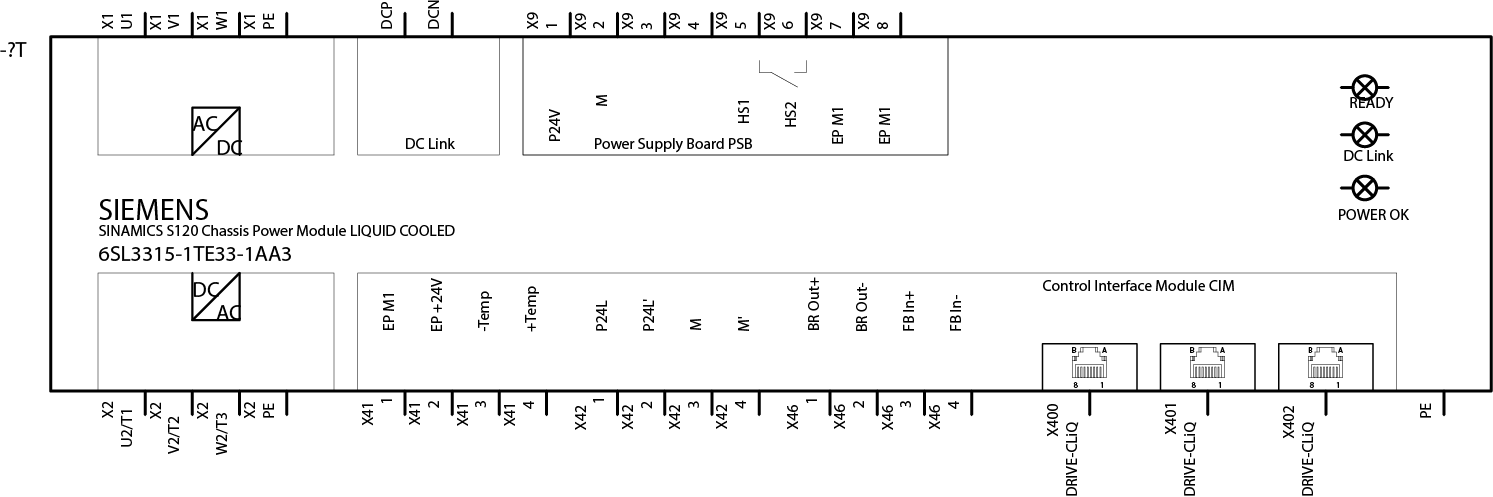

SINAMICS S120 converter power module 380 - 480 V 3AC, 50/60 Hz output: 310 A (160 kW) type of construction: built-in liquid coolin

Manufacturer's No: 6SL3315-1TE33-1AA3     Manufacturer: Siemens
SINAMICS S120 converter power module 380 - 480 V 3AC, 50/60 Hz output: 310 A (160 kW) type of construction: built-in liquid cooling incl. DRIVE-CLi...

Availability On Request

£20,564.22
  • Power module for SINAMICS S120 converter
  • Input: 380 - 480 V 3-phase AC, 50/60 Hz
  • Output: 310 A (160 kW)
  • Type of construction: Built-in liquid cooling
  • Includes DRIVE-CLiQ cable and mounting plate for CU310
  • Supports extended Safety Integrated functions


Product

Manufacturer Material ID -
6SL3315-1TE33-1AA3
Net Weight -
108.00kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
Export Control Regulations -
N / 9I999IR
UNSPSC -
32121705

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Degree of protection (IP) -
UN
Mains frequency -
UN
Number of interfaces PROFINET -
-
Type of converter -
UN
Number of phases output -
UN
Number of phases input -
UN
Relative symmetric net voltage tolerance -
- Percentage
Relative symmetric net frequency tolerance -
- Percentage
Max. output voltage -
- Volt
Nominal output current I2N -
- Ampere
Degree of protection (NEMA) -
UN
Depth -
549 Millimetre
Height -
983 Millimetre
Mains voltage -
342 Volt
Max. output at linear load at rated output voltage -
132 Kilowatt
Max. output at quadratic load at rated output voltage -
160 Kilowatt
Max. output frequency -
550 Hertz
Width -
265 Millimetre

Availability On Request

£20,564.22
