6SL33201TG285AA3

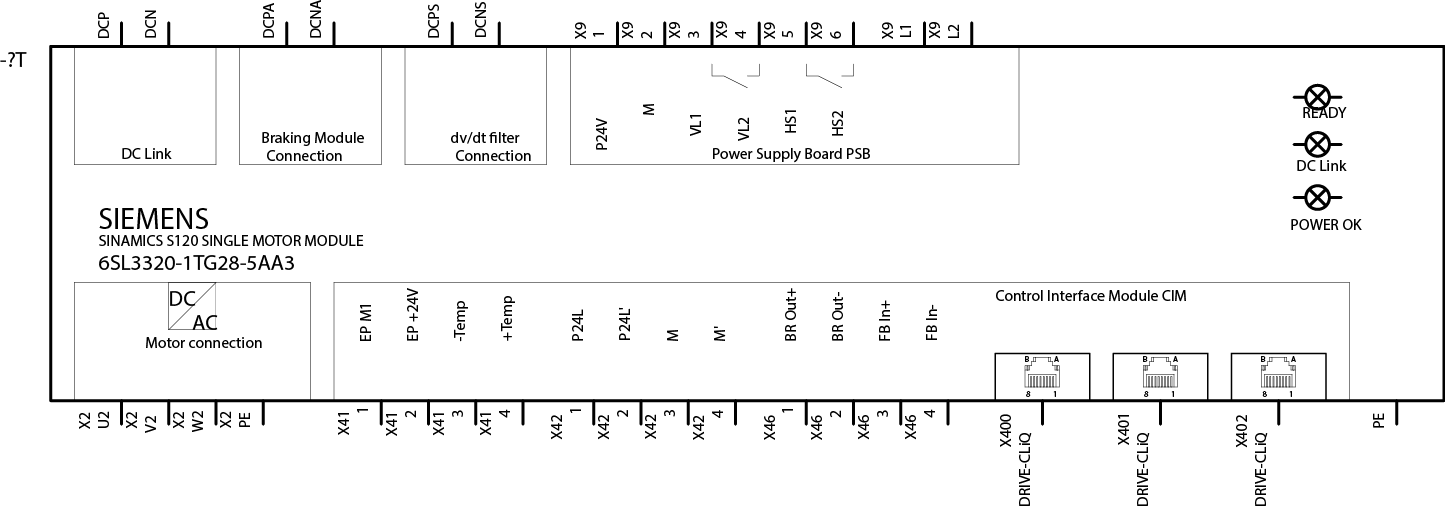

SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 675 V - 1035V OUTPUT: 3AC 500 - 690V, 85A FRAME SIZE: CHASSIS INTERNAL AIR COOLING SUP

Manufacturer's No: 6SL3320-1TG28-5AA3     Manufacturer: Siemens
SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 675 V - 1035V OUTPUT: 3AC 500 - 690V, 85A FRAME SIZE: CHASSIS INTERNAL AIR COOLING SUPPORT OF THE EXTEN...

Availability Back Order

£7,615.65
  • Input voltage: DC 675V - 1035V
  • Output voltage: 3AC 500V - 690V, 85A
  • Frame size: Chassis
  • Cooling: Internal air cooling
  • Supports extended safety integrated functions
  • Includes Drive-CLiQ cable


Product

Manufacturer Material ID -
6SL3320-1TG28-5AA3
Net Weight -
88.00kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
32121705

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Degree of protection (IP) -
UN
Mains frequency -
UN
Number of interfaces PROFINET -
-
Type of converter -
UN
Max. output at quadratic load at rated output voltage -
- Kilowatt
Relative symmetric net voltage tolerance -
- Percentage
Relative symmetric net frequency tolerance -
- Percentage
Max. output voltage -
- Volt
Nominal output current I2N -
- Ampere
Degree of protection (NEMA) -
UN
Degree of protection (IP rating) -
IP20
Depth -
356 Millimetre
Height -
1400 Millimetre
Mains voltage -
500 Volt
Max. output at linear load at rated output voltage -
55 Kilowatt
Max. output frequency -
550 Hertz
Number of phases input -
3
Number of phases output -
3
Width -
326 Millimetre

Availability Back Order

£7,615.65
Sign in or Register for customer prices.
