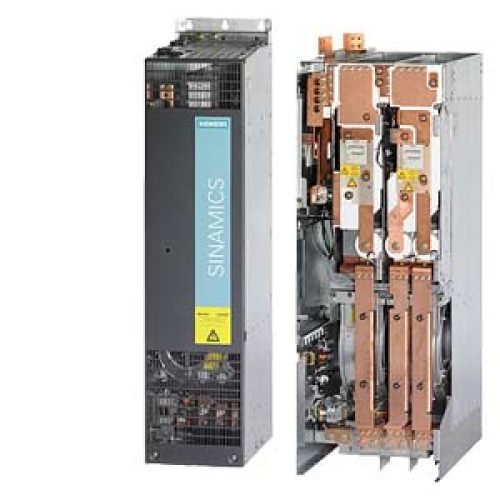

6SL33251TG322AA3

SINAMICS S120 single motor module input: 675 - 1035 V DC output: 500 - 690 V 3AC, 215 A rated power: 200 kW type of construction:

Manufacturer's No: 6SL3325-1TG32-2AA3     Manufacturer: Siemens
SINAMICS S120 single motor module input: 675 - 1035 V DC output: 500 - 690 V 3AC, 215 A rated power: 200 kW type of construction: built-in liquid cooling support of the extended Safety Integrated fun

Availability On Request

£23,237.04
  • Product Name: SINAMICS S120 Single Motor Module
  • Input Voltage: 675 - 1035 V DC
  • Output Voltage: 500 - 690 V 3AC
  • Current Rating: 215 A
  • Rated Power: 200 kW
  • Construction Type: Built-in
  • Cooling Method: Liquid Cooling
  • Safety Features: Supports Extended Safety Integrated Functions


Product

Manufacturer Material ID -
6SL3325-1TG32-2AA3
Net Weight -
80.00kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
39121007

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Degree of protection (IP) -
UN
Mains voltage -
- Volt
Mains frequency -
UN
Number of interfaces PROFINET -
-
Type of converter -
UN
Number of phases output -
UN
Number of phases input -
UN
Max. output at linear load at rated output voltage -
- Kilowatt
Max. output at quadratic load at rated output voltage -
- Kilowatt
Relative symmetric net voltage tolerance -
- Percentage
Relative symmetric net frequency tolerance -
- Percentage
Max. output voltage -
- Volt
Nominal output current I2N -
- Ampere
Degree of protection (NEMA) -
UN
Depth -
545 Millimetre
Height -
1172 Millimetre
Max. output frequency -
550 Hertz
Width -
150 Millimetre

Availability On Request

£23,237.04
