6SL33301TG330AA3

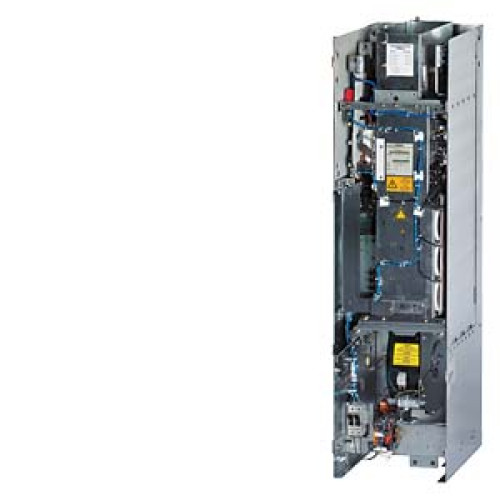

SINAMICS S120 Basic Line Module Input: 500-690V 3AC, 50/60 Hz output: 675-930 V DC, 300 A, 250 kW type of construction: built-in w

Manufacturer's No: 6SL3330-1TG33-0AA3     Manufacturer: Siemens
SINAMICS S120 Basic Line Module Input: 500-690V 3AC, 50/60 Hz output: 675-930 V DC, 300 A, 250 kW type of construction: built-in with withdrawable electronic unit (CIM) Internal air cooling incl. DRI

Availability On Request

£7,620.57
  • Product Name: SINAMICS S120 Basic Line Module
  • Input Voltage: 500-690V 3AC
  • Frequency: 50/60 Hz
  • Output Voltage: 675-930 V DC
  • Current: 300 A
  • Power: 250 kW
  • Construction Type: Built-in with withdrawable electronic unit (CIM)
  • Cooling Method: Internal air cooling
  • Additional Feature: Includes DRIVE-CLiQ cable


Product

Manufacturer Material ID -
6SL3330-1TG33-0AA3
Net Weight -
86.00kg

Additional Product Information

Commodity Code -
85044082
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
39121007

Technical Specification

Mains frequency -
UN
Number of interfaces PROFINET -
-
Type of converter -
UN
Number of phases output -
UN
Max. output frequency -
- Hertz
Max. output at linear load at rated output voltage -
- Kilowatt
Max. output at quadratic load at rated output voltage -
- Kilowatt
Relative symmetric net voltage tolerance -
- Percentage
Relative symmetric net frequency tolerance -
- Percentage
Max. output voltage -
- Volt
Nominal output current I2N -
- Ampere
Degree of protection (NEMA) -
UN
Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Degree of protection (IP) -
IP00
Degree of protection (IP rating) -
IP00
Depth -
352 Millimetre
Height -
1164 Millimetre
Mains voltage -
500 Volt
Number of phases input -
3
Width -
310 Millimetre

Availability On Request

£7,620.57
Sign in or Register for customer prices.

Additional Information
