6SL35426DF710RH1

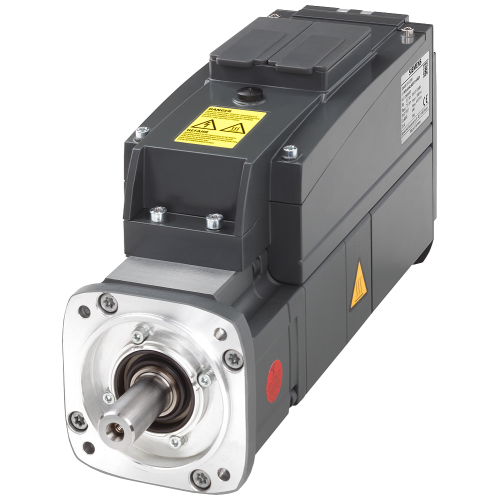

DISTRIBUTED SERVO-DRIVE SINAMICS S120M AH48, M(0)=2,5Nm, N(N)=3000 RPM, INPUT: DC 600V ABSOLUTE ENCODER 20 BIT NATURAL AIR COOLING

Manufacturer's No: 6SL3542-6DF71-0RH1     Manufacturer: Siemens
DISTRIBUTED SERVO-DRIVE SINAMICS S120M AH48, M(0)=2,5Nm, N(N)=3000 RPM, INPUT: DC 600V ABSOLUTE ENCODER 20 BIT NATURAL AIR COOLING, IM B5, IM V1, I...

Availability Back Order

£3,183.27
  • Distributed servo-drive: SINAMICS S120M AH48
  • Rated torque: 2.5 Nm
  • Maximum speed: 3000 RPM
  • Input voltage: 600V DC
  • Absolute encoder: 20-bit
  • Cooling: Natural air
  • Mounting: IM B5, IM V1, IM V3
  • IP65 protection rating
  • Plain shaft with holding brake


Product

Manufacturer Material ID -
6SL3542-6DF71-0RH1
Net Weight -
8.40kg

Additional Product Information

Commodity Code -
85015220
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
26101115

Technical Specification

Width -
- Millimetre
Height -
- Millimetre
Depth -
- Millimetre
Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Degree of protection (IP) -
UN
Mains voltage -
- Volt
Mains frequency -
UN
Number of interfaces PROFINET -
-
Type of converter -
UN
Number of phases output -
UN
Number of phases input -
UN
Max. output frequency -
- Hertz
Max. output at linear load at rated output voltage -
- Kilowatt
Max. output at quadratic load at rated output voltage -
- Kilowatt
Relative symmetric net voltage tolerance -
- Percentage
Relative symmetric net frequency tolerance -
- Percentage
Max. output voltage -
- Volt
Nominal output current I2N -
- Ampere
Degree of protection (NEMA) -
UN

Availability Back Order

£3,183.27
