6SL53101BE170DF1

SINAMICS S210 input voltage 200-480 V 3AC -10%/+10% 17.9 A 45-66 Hz output voltage: 0 input V 15.0 A 0-550 Hz motor: 7.0 kW protec

Manufacturer's No: 6SL5310-1BE17-0DF1     Manufacturer: Siemens

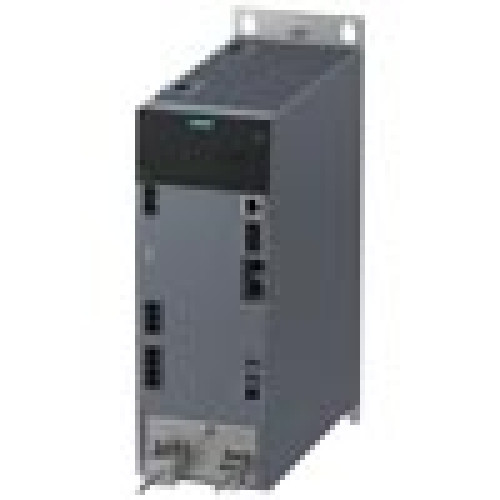

SINAMICS S210 input voltage 200-480 V 3AC -10%/+10% 17.9 A 45-66 Hz output voltage: 0 input V 15.0 A 0-550 Hz motor: 7.0 kW protection class: IP20 frame size C 105 x 322 x 223 (WxHxD)

Availability On Request

£2,774.70
  • Product Name: SINAMICS S210
  • Input Voltage: 200-480 V 3AC -10%/+10%
  • Input Current: 17.9 A
  • Frequency Range: 45-66 Hz
  • Output Voltage: 0 input V
  • Output Current: 15.0 A
  • Output Frequency: 0-550 Hz
  • Motor Power: 7.0 kW
  • Protection Class: IP20
  • Frame Size: C

Read more

  • Dimensions (WxHxD): 105 x 322 x 223 mm


Product

Manufacturer Material ID -
6SL5310-1BE17-0DF1
Net Weight -
4.80kg

Additional Product Information

Commodity Code -
85044095
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 3A999A
UNSPSC -
32121704

Availability On Request

£2,774.70
