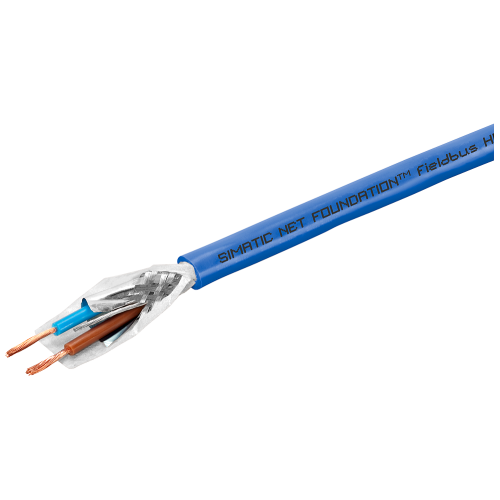

6XV18305GH10

Foundation Fieldbus Cable; bus cable for IEC 61158-2; sheath color blue for Ex applications; 2-core

Manufacturer's No: 6XV1830-5GH10     Manufacturer: Siemens
Foundation Fieldbus Cable; bus cable for IEC 61158-2; sheath color blue for Ex applications; 2-core

Availability Back Order

£4.00
  • Foundation Fieldbus Cable
  • Bus cable for IEC 61158-2
  • Sheath color: blue for Ex applications
  • 2-core shielded with stranded drain wire
  • Sold by the meter
  • Delivery unit: maximum 1000 meters
  • Minimum order quantity: 20 meters


Product

Manufacturer Material ID -
6XV1830-5GH10
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
20
UNSPSC -
26121629

Technical Specification

Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
NVP value -
- Percentage
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Colour outer sheath -
Blue
Diameter conductor -
1.17 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Polyvinyl chloride (PVC)
Reaction-to-fire class according to EN 13501-6 -
Fca
Specification material outer sheath -
Other
Core insulation material -
Other
Flame retardant -
No
Sheath material -
Polyvinyl chloride (PVC)
Conductor category -
Class 5 = flexible
Protective sheath -
No
Stranding -
Bundle
Sheath material specification -
Other
Category -
Other
Conductor Diameter -
1.17 Millimetre
Conductor surface -
Bare
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
68 Millimetre
Min. permitted bending radius, moving application/free movement -
68 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
68 Millimetre
Number of cores -
2
Number of stranding elements -
1
Outer diameter approx. -
8.5 Millimetre
Overall screen type -
Foil + braiding
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath colour -
Blue
Stranding element -
Pairs
