6XV18500AH10

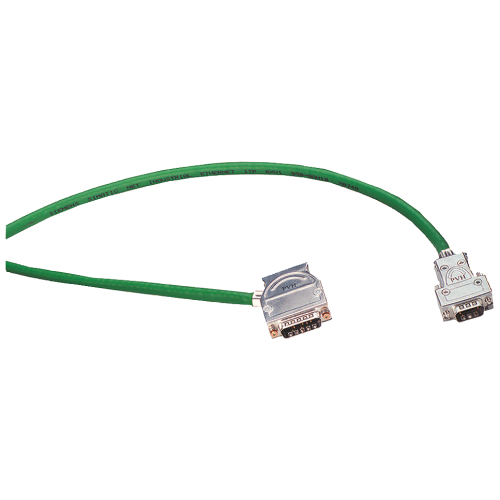

ITP Standard Cable for Industrial Ethernet J-02YSCY 2x2X0.64/1.5 PIMF F, installation cable 2x2-core

Manufacturer's No: 6XV1850-0AH10     Manufacturer: Siemens
ITP Standard Cable for Industrial Ethernet J-02YSCY 2x2X0.64/1.5 PIMF F, installation cable 2x2-core

Availability Available to order

£4.00
  • Cable Type: ITP Standard Cable for Industrial Ethernet
  • Model: J-02YSCY
  • Configuration: 2x2X0.64/1.5 PIMF F
  • Features: Installation cable for on-site assembly of connector
  • Core: 2x2-core
  • Assembly: Non-assembled
  • Sold by the meter
  • Minimum Order Quantity: 20 meters
  • Delivery Unit: Maximum 1000 meters


Product

Manufacturer Material ID -
6XV1850-0AH10
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
20
UNSPSC -
26121629

Technical Specification

Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
Outer diameter approx. -
- Millimetre
NVP value -
- Percentage
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Colour outer sheath -
Green
Diameter conductor -
0.64 Millimetre
Screen over stranding element -
Foil
Screen over stranding -
Braiding
Material outer sheath -
Polyvinyl chloride (PVC)
Reaction-to-fire class according to EN 13501-6 -
None
Specification material outer sheath -
Other
Core insulation material -
Other
Flame retardant -
No
Sheath material -
Polyvinyl chloride (PVC)
Conductor category -
Class 1 = solid
Protective sheath -
No
Stranding -
Bundle
Reaction-to-fire according to EN 13501-6: Class -
None
Sheath material specification -
Other
Category -
5
Conductor Diameter -
0.64 Millimetre
Conductor surface -
Bare
Core identification -
Colour
Individual screen type -
Foil
Min. permitted bending radius, moving application with forced guidance -
45 Millimetre
Min. permitted bending radius, moving application/free movement -
45 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
45 Millimetre
Number of cores -
4
Number of stranding elements -
2
Overall screen type -
Braiding
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Permitted cable outer temperature during assembling/handling -
70 Degrees celsius
Sheath colour -
Green
Stranding element -
Pairs
