6XV18712N

IE TP Robust buried cable;2 x without;2x2;Cat5e;PE;robust

Manufacturer's No: 6XV1871-2N     Manufacturer: Siemens
IE TP Robust buried cable;2 x without;2x2;Cat5e;PE;robust

Availability On Request

£9.00

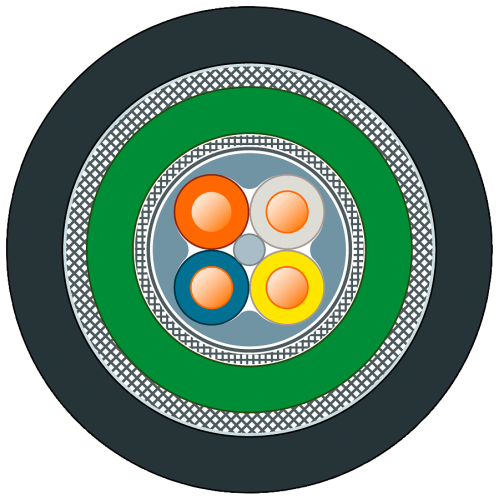

  • Robust underground cable
  • 4-core shielded Cat5e cable
  • PROFINET Type C
  • Rodent protection
  • Sold by the meter
  • Delivery unit: maximum 1000 meters
  • Minimum order quantity: 20 meters

Accessories



Product

Manufacturer Material ID -
6XV1871-2N
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
UNSPSC -
26121629

Technical Specification

Nominal cross section conductor -
- Square millimetre
Core insulation material -
UN
Circuit integrity -
UN
Conductor category -
UN
AWG-size -
-
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Flame retardant -
No
Colour outer sheath -
Black
Diameter conductor -
0.64 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Polyvinyl chloride (PVC)
Protective sheath -
No
Underground installation -
Stranding -
Bundle
Reaction-to-fire class according to EN 13501-6 -
Fca
Specification material outer sheath -
Other
Category -
5E
Conductor Diameter -
0.64 Millimetre
Conductor surface -
Bare
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
141 Millimetre
Min. permitted bending radius, moving application/free movement -
141 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
141 Millimetre
Number of cores -
4
Number of stranding elements -
2
NVP value -
65 Percentage
Outer diameter approx. -
9.4 Millimetre
Overall screen type -
Foil + braiding
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Reaction-to-fire according to EN 13501-6: Class -
Fca
Sheath colour -
Black
Stranding element -
Quad
Suitable for underground installation -

Availability On Request

£9.00
