6XV18782C

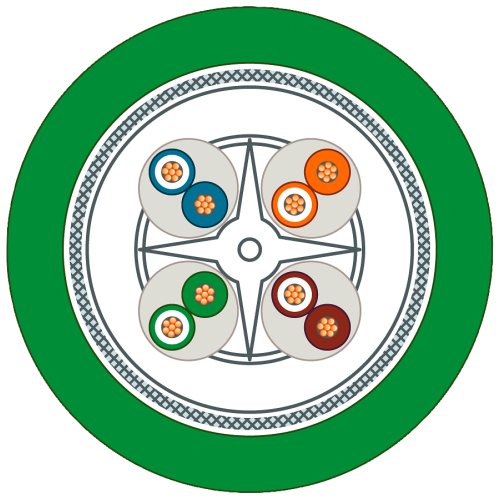

IE FC TP cable GP;2 x without;dragchain;4x2;Cat6A;halogen-free;PUR;robust

Manufacturer's No: 6XV1878-2C     Manufacturer: Siemens
IE FC TP cable GP;2 x without;dragchain;4x2;Cat6A;halogen-free;PUR;robust

Availability On Request

£8.00
  • Trailing cable for IE FC TP
  • Type: Installation cable CAT6A
  • AWG: 24
  • For connection to IE FC RJ45 plug 4x2, AWG24
  • Sold by the meter
  • Delivery unit: Max. 1000m
  • Minimum order quantity: 20m

Accessories



Product

Manufacturer Material ID -
6XV1878-2C
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85444995
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
20
UNSPSC -
26121629

Technical Specification

-
Siemens
Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Colour outer sheath -
Green
Diameter conductor -
0.58 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Polyurethane (PUR)
Reaction-to-fire class according to EN 13501-6 -
Eca
Specification material outer sheath -
Other
Core insulation material -
Other
Flame retardant -
No
Sheath material -
Polyurethane (PUR)
Conductor category -
Class 2 = stranded
Protective sheath -
No
Stranding -
Bundle
Sheath material specification -
Other
Category -
6
Conductor Diameter -
0.58 Millimetre
Conductor surface -
Bare
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
64 Millimetre
Min. permitted bending radius, moving application/free movement -
64 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
64 Millimetre
Number of cores -
8
Number of stranding elements -
4
NVP value -
69 Percentage
Outer diameter approx. -
8 Millimetre
Overall screen type -
Foil + braiding
Permitted cable outer temperature after assembling without vibration -
-30 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-30 Degrees celsius
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath colour -
Green
Stranding element -
Pairs

Availability On Request

£8.00
