6XV18785BH50

IE cable IE FC;2 x RJ45;4x2;5m;Cat6A, Class EA;PVC;robust

Manufacturer's No: 6XV1878-5BH50     Manufacturer: Siemens
IE cable IE FC;2 x RJ45;4x2;5m;Cat6A, Class EA;PVC;robust

Availability Back Order

£73.00

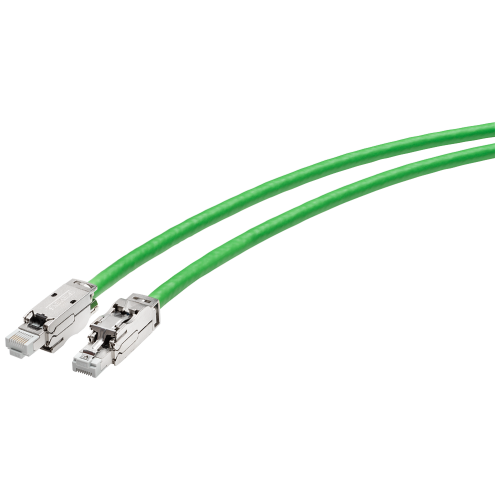

  • Pre-assembled IE FC flexible GP 4x2 cable
  • Length: 5.0 meters
  • 2x IE FC RJ45 Plug-180 connectors


Product

Manufacturer Material ID -
6XV1878-5BH50
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
SK
RoHs Compliance -
Yes
UNSPSC -
26121629

Technical Specification

AWG-size -
-
Anti-kink sleeve -
UN
Cable construction -
UN
Colour anti-kink sleeve -
UN
Case connector connection 1 -
UN
Case connector connection 2 -
UN
Material connector of connector housing connection 1 -
UN
Material connector of connector housing connection 2 -
UN
Cable type -
Other
Pin assignment -
1:1
Length -
5 Metre
Colour outer sheath -
Green
Type of connector connection 1 -
RJ45 8(8)
Type of connector connection 2 -
RJ45 8(8)
Degree of protection (IP) -
Other
Core insulation material -
Other
Flame retardant -
No
Circuit integrity -
No
Sheath material -
Polyvinyl chloride (PVC)
Protective sheath -
No
Stranding -
Bundle
Reaction-to-fire according to EN 13501-6: Class -
None
Sheath material specification -
Other
Category -
6
Conductor Diameter -
0.6 Millimetre
Conductor surface -
Bare
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
40 Millimetre
Min. permitted bending radius, moving application/free movement -
40 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
40 Millimetre
Number of cores -
8
NVP value -
68 Percentage
Outer diameter approx. -
8 Millimetre
Overall screen type -
Foil + braiding
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Sheath colour -
Green
Stranding element -
Pairs

Availability Back Order

£73.00
