7030002

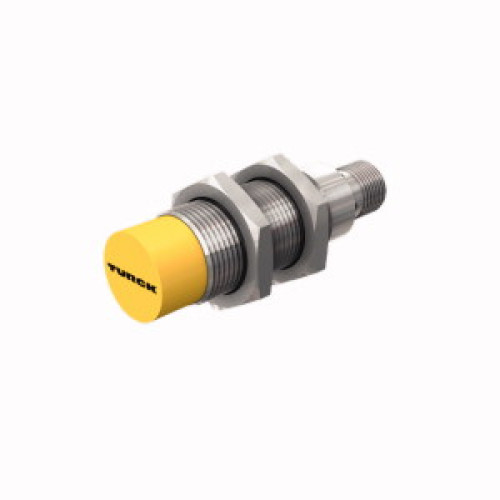

HF Read/Write Head

Manufacturer's No: TN-M18-H1147     Manufacturer: Turck Banner
HF Read/Write Head

Availability On Request

POA
  • HF Read/Write Head
  • Operating voltage: 10-30 VDC

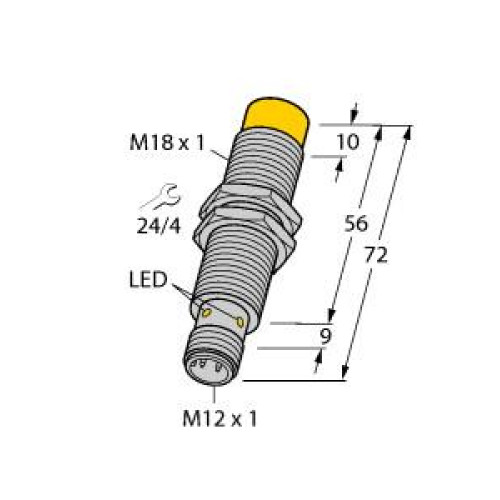

  • Non-flush, Threaded barrel, M18 x 1, Chrome-plated brass
  • Powered and operated only via connection to BL ident interface module
  • M12 x 1 connector, connection only via BL ident extension cable


Product

Manufacturer Material ID -
TN-M18-H1147
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
84719000000
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Degree of protection (IP rating) -
IP67
Depth -
72 Millimetre
Diameter -
18 Millimetre
Frequency -
13.56 Megahertz
Housing material -
Other
Max. transmission range -
45 Millimetre
Radio protocol -
ISO 15693
Type of electric connection -
Plug-in connection
Type of voltage (input voltage) -
DC
Turck Banner

Availability On Request

POA
