721-203/037-045

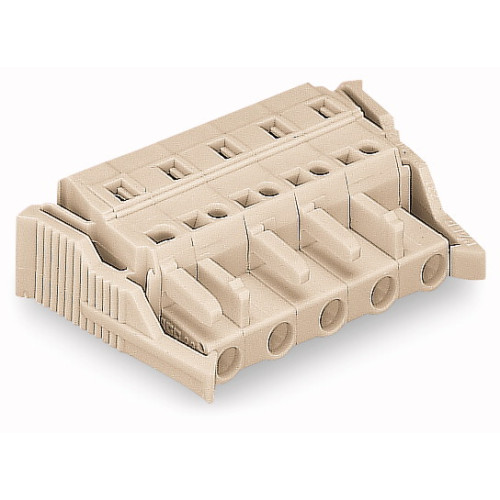

Female connector 100 protected against mismating with lateral locking levers light gray

Manufacturer's No: 721-203/037-045     Manufacturer: WAGO
Female connector 100 protected against mismating with lateral locking levers light gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.00

£2.72
  • Female connector with lateral locking levers
  • 100% protected against mismating
  • Light gray color


Product

Manufacturer Material ID -
721-203/037-045
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Coating housing -
UN
Type of connection -
Printed circuit board to cable
Colour housing -
Other
Rated voltage -
630 Volt
Contact type -
Bus
Material housing -
Plastic
Operation temperature -
-60 Degrees celsius
Inflammability class of insulation material acc. with UL94 -
V0
Rated surge voltage -
6 Kilovolt
Type of electric connection -
Spring clamp connection
Material of contact surface -
Tin
Over voltage category -
III
Pollution degree -
2
Connectable cable type -
Tubular cable
Modular spacing connections -
7.5 Millimetre
Number of plug-in contact rows -
1
Modular spacing contacts -
7.5 Millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Degree of protection (IP), mounted -
IP20
Material insulation body -
Thermoplastic
Material contact -
Other copper alloys
Angle contact/conductor connection -
180° (horizontal)
Rated current In -
16 Ampere

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.00

£2.72
