722-839/047-000

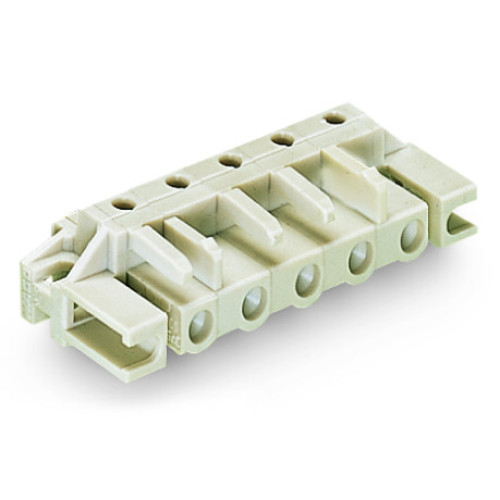

Female connector with spacers 100 protected against mismating light gray

Manufacturer's No: 722-839/047-000     Manufacturer: WAGO
Female connector with spacers 100 protected against mismating light gray

Availability Back Order

POA
  • THT female header
  • Angled with spacer flange
  • 9-pole with pin spacing of 7.5 mm
  • 100% protected against mismating
  • Solder pin size: 0.6 x 1.0 mm
  • Color: Light gray

Accessories

Screw with nut, M2x12, for fixing element

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 231-195
Price £0.08
Back Order

Self-Tapping Screw,

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 209-147
Price £0.07
Back Order

Self-tapping screw, B 2.2x13, fixing hole 1.8 mm dia

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 231-194
Price £0.07
Back Order


Product

Manufacturer Material ID -
722-839/047-000
Net Weight -
0.47kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Diameter connection pin -
- Millimetre
Colour housing -
Other
Operation temperature -
-60 Degrees celsius
Angle PCB/contact -
0°/180° (horizontal)
Connector model -
Free connector
Contact type -
Pin
Housing colour -
Other
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
5 Millimetre
Material insulation body -
Thermoplastic
Material of contact surface -
Tin
Modular spacing connections -
7.5 Millimetre
Modular spacing contacts -
7.5 Millimetre
Number of plug-in contact rows -
1
Number of poles -
9
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
12 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
630 Volt
Suitable for PCB thickness -
1.5 Millimetre
Type of banding -
None
Type of connection -
Flexible PCB-connector
Type of electric connection -
Soldering connection
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability Back Order

POA
