723-604/019-044

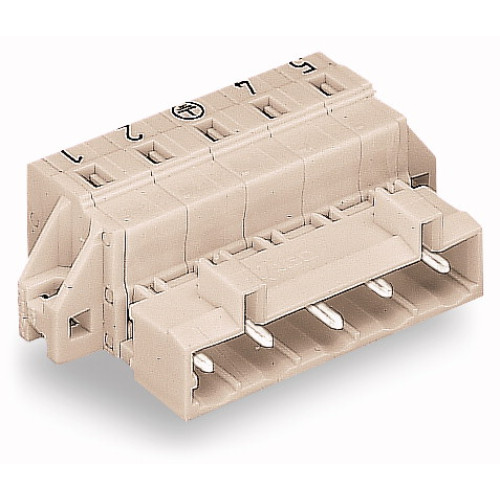

Male connector 100 protected against mismating with fixing flange light gray

Manufacturer's No: 723-604/019-044     Manufacturer: WAGO
Male connector 100 protected against mismating with fixing flange light gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.00

£3.69
  • Male connector 100 with fixing flange
  • Light gray color
  • Protected against mismating


Product

Manufacturer Material ID -
723-604/019-044
Net Weight -

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Coating housing -
UN
Type of connection -
Printed circuit board to cable
Colour housing -
Grey
Rated voltage -
630 Volt
Contact type -
Pin
Material housing -
Plastic
Operation temperature -
-60 Degrees celsius
Inflammability class of insulation material acc. with UL94 -
V0
Rated surge voltage -
6 Kilovolt
Type of electric connection -
Spring clamp connection
Material of contact surface -
Tin
Over voltage category -
III
Pollution degree -
2
Connectable cable type -
Tubular cable
Modular spacing connections -
7.5 Millimetre
Number of plug-in contact rows -
1
Modular spacing contacts -
7.5 Millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Degree of protection (IP), mounted -
IP10
Material insulation body -
Thermoplastic
Material contact -
Other copper alloys
Angle contact/conductor connection -
180° (horizontal)
Rated current In -
12 Ampere
