732-116/026-000/035-000

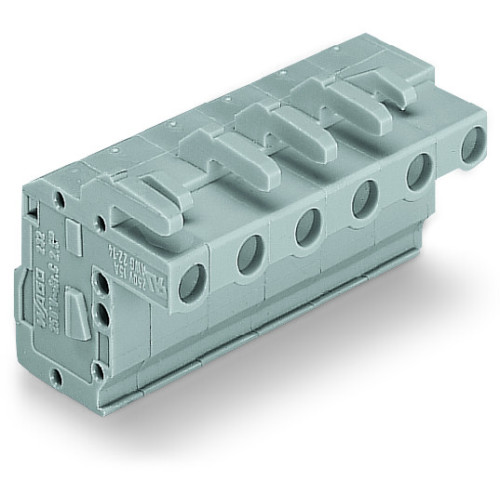

1-conductor female connector, angled, CAGE CLAMP®, 2.5 mm², gray

Manufacturer's No: 732-116/026-000/035-000     Manufacturer: WAGO
1-conductor female connector, angled, CAGE CLAMP®, 2.5 mm², gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • 1-conductor female connector, angled
  • CAGE CLAMP® technology
  • 2.5 mm² wire capacity
  • 16-pole connector with 7.5 mm pin spacing
  • Strain relief plate included
  • Gray color
  • Stranded wire capacity of 2.50 mm²

Accessories

Marking strips, as a DIN A4 sheet, MARKED, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 210-332/750-020
Price POA
On Request


Product

Manufacturer Material ID -
732-116/026-000/035-000
Net Weight -
0.53kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Colour housing -
Grey
Material housing -
Plastic
Operation temperature -
-60 Degrees celsius
Angle contact/conductor connection -
270° (downwards vertical)
Coating housing -
Uncoated
Connectable cable type -
Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Contact type -
Bus
Degree of protection (IP), mounted -
IP20
Housing colour -
Grey
Housing material -
Plastic
Inflammability class of insulation material acc. with UL94 -
V0
Material contact -
Other copper alloys
Material insulation body -
Thermoplastic
Material of contact surface -
Tin
Modular spacing connections -
7.5 Millimetre
Modular spacing contacts -
7.5 Millimetre
Number of plug-in contact rows -
1
Number of poles -
16
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
16 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
630 Volt
Type of connection -
Printed circuit board to cable
Type of electric connection -
Spring clamp connection

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
