734-144/105-604/997-408

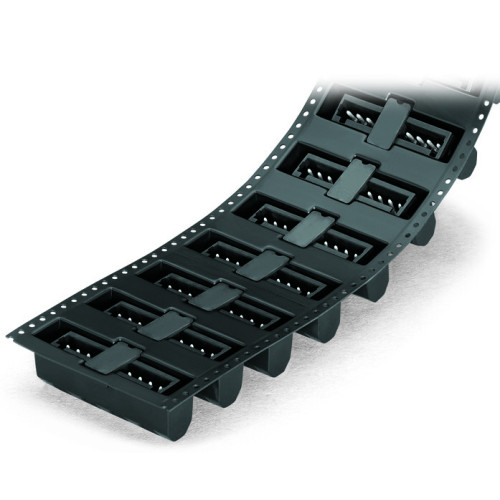

THR male header, 1.0 x 1.0 mm solder pin, straight, black

Manufacturer's No: 734-144/105-604/997-408     Manufacturer: WAGO
THR male header, 1.0 x 1.0 mm solder pin, straight, black

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • THR male header
  • 1.0 x 1.0 mm solder pin, straight
  • Pin spacing: 3.5 mm
  • 14-pole
  • 100% protected against mismating
  • Black color
  • Tape-and-reel packaging

Accessories

Coding key, to be snapped above top level, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 734-159
Price POA
On Request


Product

Manufacturer Material ID -
734-144/105-604/997-408
Net Weight -
0.77kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Diameter connection pin -
- Millimetre
Colour housing -
Black
Operation temperature -
-60 Degrees celsius
Angle PCB/contact -
90° (upwards vertical)
Connector model -
Free connector
Contact type -
Pin
Housing colour -
Black
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
2.4 Millimetre
Material insulation body -
Thermoplastic
Material of contact surface -
Tin
Modular spacing connections -
3.5 Millimetre
Modular spacing contacts -
3.5 Millimetre
Number of plug-in contact rows -
1
Number of poles -
14
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
10 Ampere
Rated surge voltage -
2.5 Kilovolt
Rated voltage -
160 Volt
Suitable for PCB thickness -
1.5 Millimetre
Type of banding -
None
Type of connection -
Flexible PCB-connector
Type of electric connection -
THR connection
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
