734-433

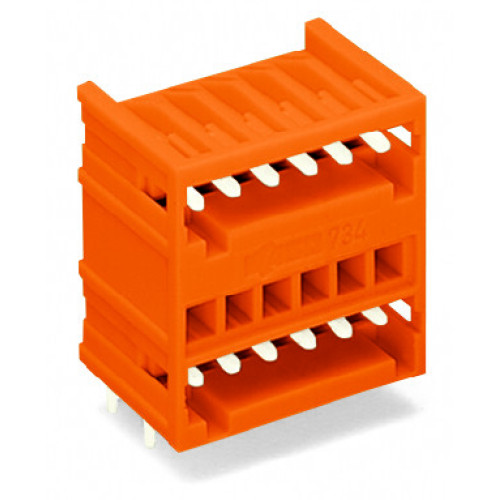

Double-Deck Male Headers, Angled Solder Pin 1 X 1 mm 3X2-Pole Orange

Manufacturer's No: 734-433     Manufacturer: WAGO
Double-Deck Male Headers, Angled Solder Pin 1 X 1 mm 3X2-Pole Orange

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£1.99
  • THT double-deck male header
  • 1.0 x 1.0 mm solder pin, angled
  • Pin spacing: 3.81 mm
  • 6-pole configuration
  • 100% protected against mismating
  • Color: Orange

Accessories

Coding Key, To Be Snapped Above Top Level White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 734-130
Price £0.08
Back Order


Product

Manufacturer Material ID -
734-433
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
100
UNSPSC -
39121402

Technical Specification

Diameter connection pin -
- Millimetre
Colour housing -
Orange
Operation temperature -
-60 Degrees celsius
Angle PCB/contact -
0°/180° (horizontal)
Connector model -
Free connector
Contact type -
Pin
Housing colour -
Orange
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
3.6 Millimetre
Material insulation body -
Thermoplastic
Material of contact surface -
Tin
Modular spacing connections -
3.81 Millimetre
Modular spacing contacts -
3.81 Millimetre
Number of plug-in contact rows -
2
Number of poles -
6
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
10 Ampere
Rated surge voltage -
2.5 Kilovolt
Rated voltage -
160 Volt
Suitable for PCB thickness -
1.5 Millimetre
Type of banding -
None
Type of connection -
Flexible PCB-connector
Type of electric connection -
Soldering connection
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£1.99
