741-915

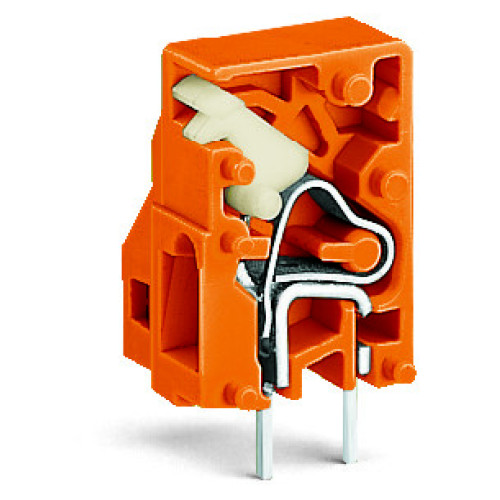

Stackable PCB terminal block, push-button, 2.5 mm², orange

Manufacturer's No: 741-915     Manufacturer: WAGO
Stackable PCB terminal block, push-button, 2.5 mm², orange

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.67
  • Stackable PCB terminal block
  • Push-button design
  • 1-pole configuration
  • Pin spacing: 6.5 mm
  • CAGE CLAMP® technology for secure connections
  • Clamping collar for added stability
  • Wire size capacity: 2.5 mm²
  • Color: orange


Product

Manufacturer Material ID -
741-915
Net Weight -
1.05kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
CH
Minimum Order Quantity -
100
UNSPSC -
39121410

Technical Specification

Angle PCB/conductor connection -
0°/180° (horizontal)
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Connection type conductor -
Spring clamp connection
Connection type PCB -
Soldering connection
Height -
18.5 Millimetre
Housing colour -
Orange
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
4 Millimetre
Material connection surface -
Tin
Material insulation body -
Thermoplastic
Modular spacing connections -
6.5 Millimetre
Number of electrical connections -
1
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
16 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact
