750014

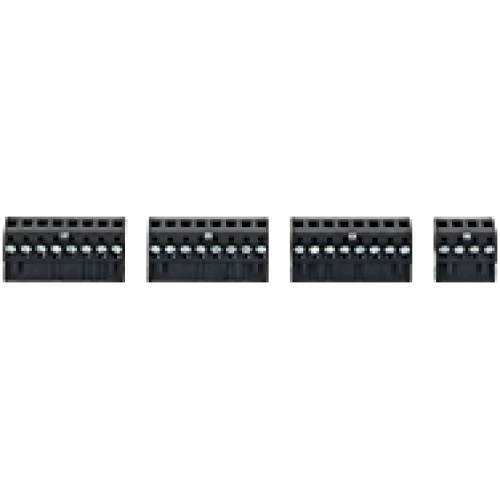

Set of screw terminals for 45 mm housing, PU = 1 piece each X1/X3 8-pin and X4 4-pin.

Manufacturer's No: PNOZ s Set3screw terminals 45mm     Manufacturer: Pilz
Set of screw terminals for 45 mm housing, PU = 1 piece each X1/X3 8-pin and X4 4-pin.

Availability Back Order

£38.14
  • Set of spare plug-in terminals
  • Screw terminal
  • Includes 1 piece each of 1X1, 1X2, 1X38-pin, and 4X4-pin terminals
  • Compatible with 45 mm housing


Product

Manufacturer Material ID -
PNOZ s Set3screw terminals 45mm
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121410

Technical Specification

Width -
40 Millimetre
Height -
20 Millimetre
Depth -
20 Millimetre
Number of poles -
8
Number of clamp positions per pole -
1
Conductor cross section flexible (fine-strand) with cable end sleeve -
0.2 Square millimetre
Conductor cross section solid (solid, stranded) -
0.25 Square millimetre
Max. rated current -
6 Ampere
Accessory -
Type of accessory/spare part -
Connection clamp
Pilz

Availability Back Order

£38.14
