751185

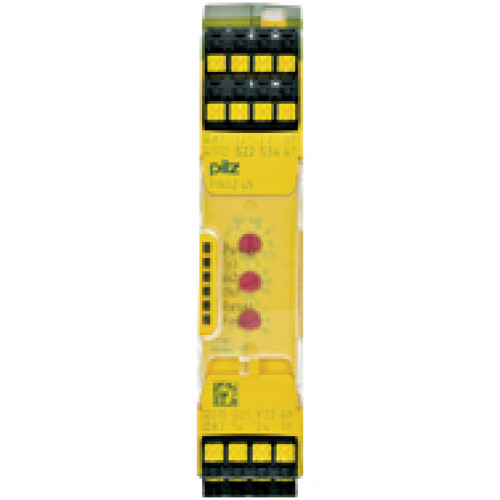

PNOZsigma safety relay (standalone) inputs: 1/2-channel wiring with/without detection of shorts across contacts

Manufacturer's No: PNOZ s5 C 24VDC 2 n/o 2 n/o t coated     Manufacturer: Pilz
PNOZsigma safety relay (standalone) inputs: 1/2-channel wiring with/without detection of shorts across contacts

Availability Available to order

£374.48
  • Safety relay for standalone use
  • Inputs: 1/2-channel wiring with/without detection of shorts across contacts
  • Outputs: 2 N/O, 2 N/O t-d (time delay adjustable from 0.04 to 300 seconds), 1 SC
  • Supply voltage: 24 V DC
  • Width: 22.5 mm
  • Plug-in spring-loaded terminals
  • Monitoring of E-STOP and safety gates
  • Coated version for added protection

Accessories



Product

Manufacturer Material ID -
PNOZ s5 C 24VDC 2 n/o 2 n/o t coated
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Model -
Basic device
Release-delay -
0 Second
With approval according to UL -
With detachable clamps -
With start input -
Number of outputs, safety related, undelayed, with contact -
2
Number of outputs, safety related, delayed, with contact -
2
Number of outputs, signalling function, undelayed, semiconductors -
1
Rail mounting possible -
Suitable for monitoring of magnetic switches -
Suitable for monitoring of proximity switches -
Suitable for monitoring of emergency-stop circuits -
Suitable for monitoring of optoelectronic protection equipment -
Suitable for monitoring of position switches -
Suitable for monitoring of valves -
Performance level acc. to EN ISO 13849-1 -
Level e
Evaluation inputs -
One- and two-channel
SIL according to IEC 61508 -
3
Depth -
120 Millimetre
Height -
100 Millimetre
Type of electric connection -
Spring clamp connection
Width -
22.5 Millimetre
With approval for TÜV -
Pilz

Availability Available to order

£374.48
