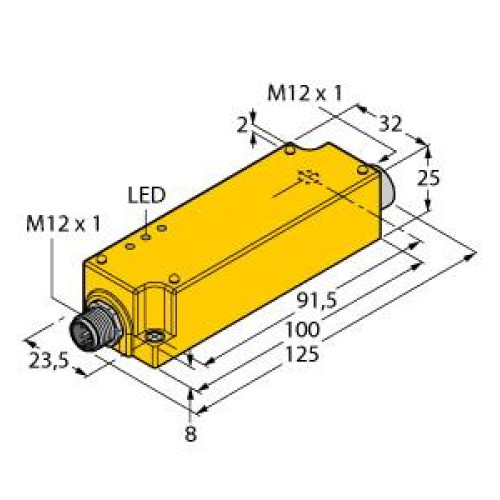

Isolating switching amplifier, 2-channel

Manufacturer's No: IMC-DI-22EX-PNO/24VDC     Manufacturer: Turck Banner
Isolating switching amplifier, 2-channel

Availability On Request

POA
  • Isolating switching amplifier
  • 2 channels
  • Operating voltage: 20-30 VDC
  • Line monitoring for wire break/short circuit
  • PNP transistor output NO
  • Complete galvanic isolation
  • Input reverse-polarity protected
  • Protection class: IP67
  • Connection with M12 male connectors
  • ATEX, IECEx, CFMUS, TR CU certified

Read more

  • Installation in zone 2/22


Product

Manufacturer Material ID -
IMC-DI-22EX-PNO/24VDC
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85437090990
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Degree of protection (IP rating) -
IP67
Depth -
100 Millimetre
Height -
25 Millimetre
Mounting method -
Other
Operating temperature -
-25 Degrees celsius
Rated supply voltage at DC -
20 Volt
Switching current -
0.1 Ampere
Switching frequency -
3000 Hertz
Switching voltage -
30 Volt
Type of electric connection -
Screw connection
Width -
32 Millimetre
