2TLA076310R1200

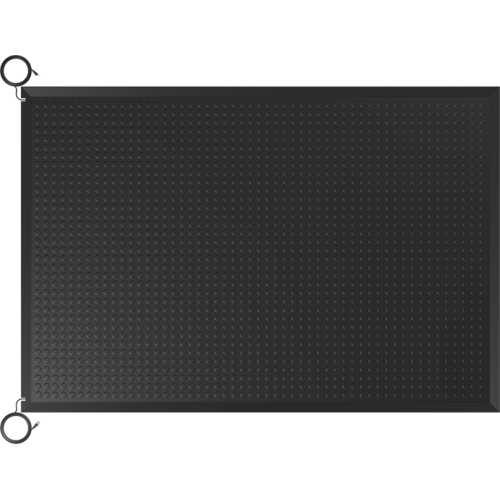

ASK-1T4.4-NP 1x1.5 Safety mat

Manufacturer's No: 76-310-12     Manufacturer: ABB
ASK-1T4.4-NP 1x1.5 Safety mat

Availability On Request

£2,005.79
  • Safety mat model: ASK-1T4.4-NP 1x1.5
  • Safeguarded area: 1000 x 1500 mm
  • Cast-in ramp edge trim included
  • Equipped with 2 cables, each 5 m long
  • Cable specifications: 2 x 0.34 mm2, PU sheathed
  • Cables have M8 male connectors


Product

Manufacturer Material ID -
76-310-12
Net Weight -
38.00kg

Additional Product Information

Commodity Code -
85365080
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Colour -
Black
Degree of protection (IP rating) -
IP65
Edge trim included -
Height -
10 Millimetre
Length -
1000 Millimetre
Length of connection cable -
5 Metre
Material -
Polyurethane (PUR)
Max. current (Imax) -
0.1 Ampere
Max. force with 80 mm diameter -
2000 Newton
Max. operating voltage (Umax) -
24 Volt
Model -
Safety mat
Required switching force with 80 mm diameter -
150 Newton
Width -
1500 Millimetre
ABB

Availability On Request

£2,005.79
