769-239/281-434

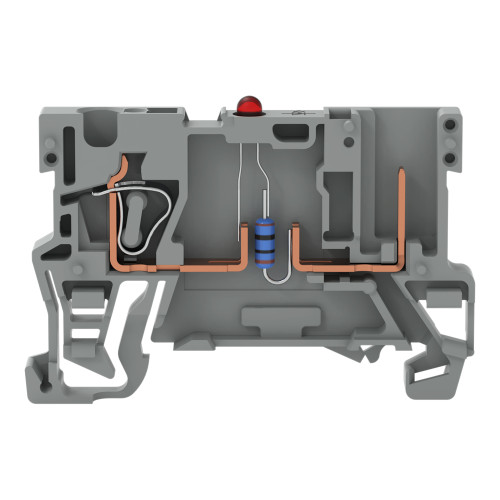

1-conductor/1-pin component carrier terminal block, LED (red), 24 VDC, gray

Manufacturer's No: 769-239/281-434     Manufacturer: WAGO
1-conductor/1-pin component carrier terminal block, LED (red), 24 VDC, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • Terminal block for 1 conductor with 1 pin
  • LED indicator (red)
  • Voltage: 24 VDC
  • Compatible with DIN-rails of 35 x 15 and 35 x 7.5
  • Connection type: CAGE CLAMP®
  • Maximum wire size: 4 mm²
  • Color: gray


Product

Manufacturer Material ID -
769-239/281-434
Net Weight -
0.58kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Length -
52.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
28.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
28.5 Millimetre
Height -
52.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
0.025 Ampere
Rated voltage -
24 Volt
Type of component -
LED
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Plug-in connection
Width -
5 Millimetre
