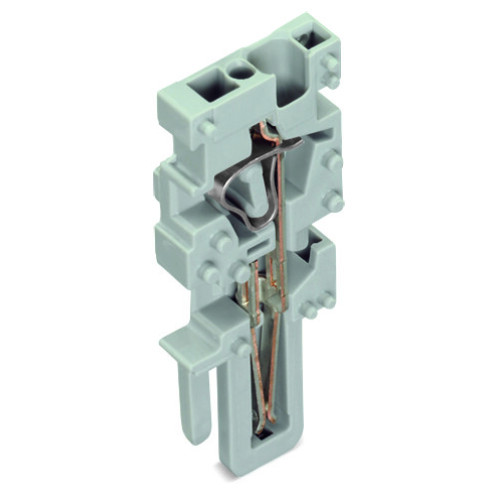

769-502

1-conductor center module; codable; can be commoned with miniature adjacent jumpers; 1-pole

Manufacturer's No: 769-502     Manufacturer: WAGO
1-conductor center module; codable; can be commoned with miniature adjacent jumpers; 1-pole

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£0.80
  • Center module for 1-conductor female connector
  • CAGE CLAMP® technology
  • 4 mm² wire capacity
  • Pin spacing of 5 mm
  • 1-pole configuration
  • Coding finger feature
  • Color: gray

Accessories

Miniature WSB Quick Marking System, Plain Marker Width 5 mm

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501
Price £2.82
Back Order

Operating tool, made of insulating material, 1-way, loose, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 769-434
Price £0.11
Back Order

Ferrule, Sleeve For 0.75 mm / Awg 20 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-102
Price £0.02
Back Order

Ferrule, Sleeve For 0.5 mm / Awg 22 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-101
Price £0.02
Back Order

Ferrule, Sleeve For 1 mm / Awg 18 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-103
Price £0.02
In Stock

Ferrule, Sleeve For 1.5 mm / Awg 16 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-104
Price £0.02
Back Order

Ferrule, Sleeve For 0.5 mm / Awg 22 Insulated White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-201
Price £0.05
Back Order

Ferrule, Sleeve For 0.75 mm / Awg 20 Insulated Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-202
Price £0.05
Back Order

Ferrule, Sleeve For 1 mm / Awg 18 Insulated Red

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-203
Price £0.05
In Stock

Ferrule, Sleeve For 1.5 mm / Awg 16 Insulated Black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-204
Price £0.05
Back Order

Ferrule, Sleeve For 2.5 mm / Awg 14 Insulated Blue

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-206
Price £0.05
Back Order

Ferrule, Sleeve For 0.25 mm / Awg 24 Insulated Yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-301
Price £0.05
Back Order

Ferrule, Sleeve For 0.34 mm / Awg 24 Insulated Green

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-302
Price £0.05
Back Order

Strain Relief Plate, 2- To 3-Pole Snap-On Type For Female Plugs Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 769-411
Price £0.35
In Stock

Locking Lever, Can Be Snapped On Female Plugs 2 Poles And More Orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 769-431
Price £0.16
Back Order

Locking Lever, Can Be Snapped On Female Plugs 2 Poles And More Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 769-430
Price £0.16
Back Order

Insulation stop, 0.25 - 0.5 mm, 5 pieces/strip, light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 769-471
Price £0.11
Back Order


Product

Manufacturer Material ID -
769-502
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85234925
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
18.3 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
45.2 Millimetre
Connection position -
Above
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
45.2 Millimetre
Halogen free -
Height -
18.3 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
1
Operating temperature -
105 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£0.80
