769-607

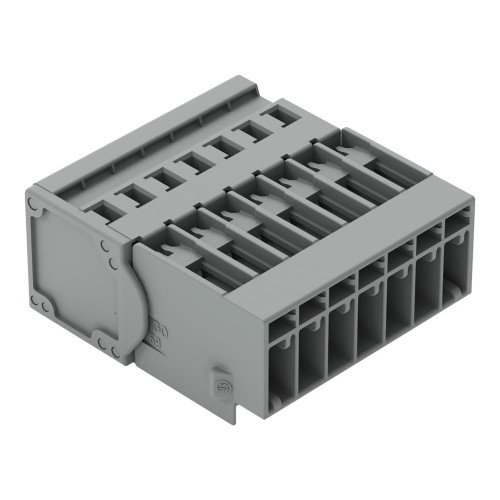

1-conductor male connector, CAGE CLAMP®, 4 mm², gray

Manufacturer's No: 769-607     Manufacturer: WAGO
1-conductor male connector, CAGE CLAMP®, 4 mm², gray

Availability Available to order

£5.21
  • 1-conductor male connector with CAGE CLAMP®

  • 7-pole connector with pin spacing of 5 mm

  • Wire size capacity of 4.00 mm²

  • Color: gray

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.87
Available to order

Mini-WSB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-007
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-024
Price £4.03
Available to order

Lockout caps, for covering unused clamping units, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 231-668
Price £0.04
Available to order

Mini-WSB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-006
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-012
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-005
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-023
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-002
Price £4.03
Available to order

Lockout caps, for covering unused clamping units, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 231-669
Price £0.04
Available to order

1-conductor female connector, CAGE CLAMP®, 4 mm², green-yellow/gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-102/000-036
Price POA
Available to order

Insulation stop, 0.75 - 1 mm², 5 pieces/strip, dark gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-472
Price POA
Available to order


Product

Manufacturer Material ID -
769-607
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
PL
Export Control Regulations -
85369010
Minimum Order Quantity -
None
RoHs Compliance -
products/11470471.jpg
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
40.2 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
18.3 Millimetre
Connection position -
Sideways
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
18.3 Millimetre
Height -
40.2 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
7
Operating temperature -
105 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
38.6 Millimetre

Availability Available to order

£5.21
