769-608

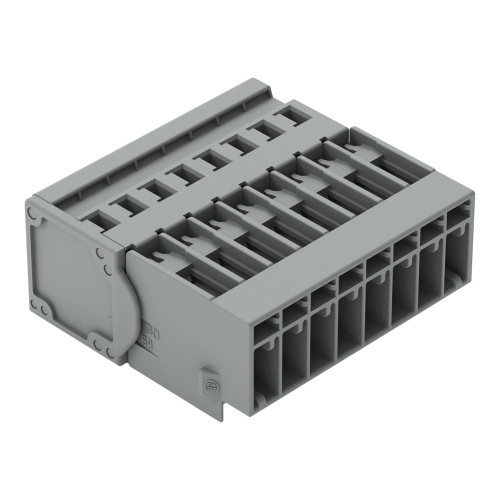

1-conductor male connector, CAGE CLAMP®, 4 mm², gray

Manufacturer's No: 769-608     Manufacturer: WAGO
1-conductor male connector, CAGE CLAMP®, 4 mm², gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£5.76
  • 1-conductor male connector
  • CAGE CLAMP® technology
  • 4 mm² wire capacity
  • Pin spacing of 5 mm
  • 8-pole connector
  • Color: gray


Product

Manufacturer Material ID -
769-608
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
PL
Minimum Order Quantity -
25
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
40.2 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
18.3 Millimetre
Connection position -
Sideways
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
18.3 Millimetre
Height -
40.2 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
8
Operating temperature -
105 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
43.6 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£5.76
