769-613

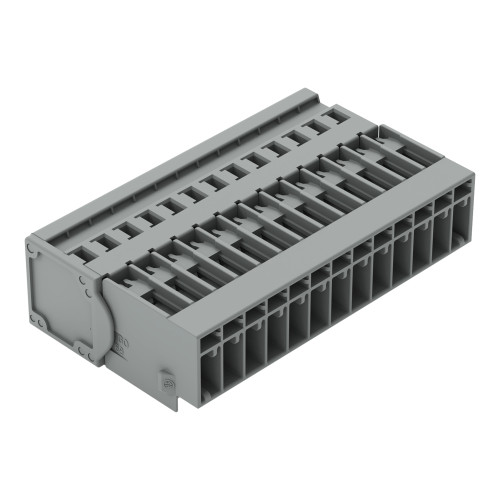

1-conductor male connector, CAGE CLAMP®, 4 mm², gray

Manufacturer's No: 769-613     Manufacturer: WAGO
1-conductor male connector, CAGE CLAMP®, 4 mm², gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • 1-conductor male connector with CAGE CLAMP®
  • Pin spacing: 5 mm
  • 13-pole connector
  • Wire size: 4.00 mm²
  • Color: Gray


Product

Manufacturer Material ID -
769-613
Net Weight -
1.01kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
PL
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
40.2 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
18.3 Millimetre
Connection position -
Sideways
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
18.3 Millimetre
Height -
40.2 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
13
Operating temperature -
105 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
68.6 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
Sign in or Register for customer prices.
