770-113/147-000

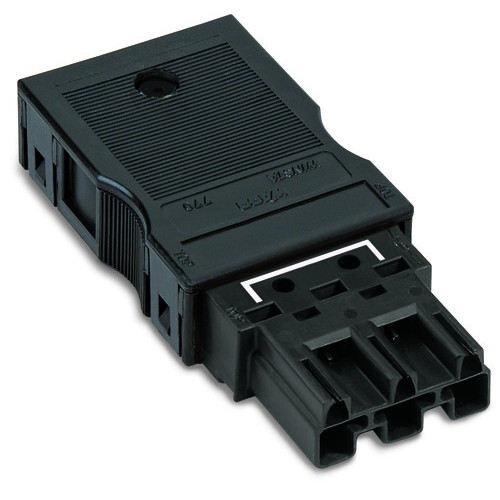

Shorting plug, with assembled strain relief housing, 3-pole, black

Manufacturer's No: 770-113/147-000     Manufacturer: WAGO
Shorting plug, with assembled strain relief housing, 3-pole, black

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£3.96
  • Shorting plug with assembled strain relief housing
  • 3-pole configuration
  • Cod. A coding
  • Bridge connection for L-N poles
  • Suitable for 4.00 mm² wires
  • Color: black


Product

Manufacturer Material ID -
770-113/147-000
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
25
UNSPSC -
39121402

Technical Specification

Cable diameter -
- Millimetre
Connection cross section (fine-strand) -
- Square millimetre
Connection cross section (solid-core) -
- Square millimetre
Locking mechanism -
Separate
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Pole codification -
L, N, PE
Colour coding/contact insert -
Black
Connection type -
Spring clamp connection
Contact material -
Other
Continuity resistance -
3 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
1.04194 Kilowatthour
Halogen free -
Height -
15 Millimetre
Housing material -
Polyamide (PA)
Length -
75.9 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Plug
Number of connections per pole -
2
Number of poles -
3
Pollution degree -
3
Rated current -
20 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Surface finish contacts -
Other
Type of locking -
Separate
Width -
34.6 Millimetre
With strain relief -

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£3.96
