770-1373

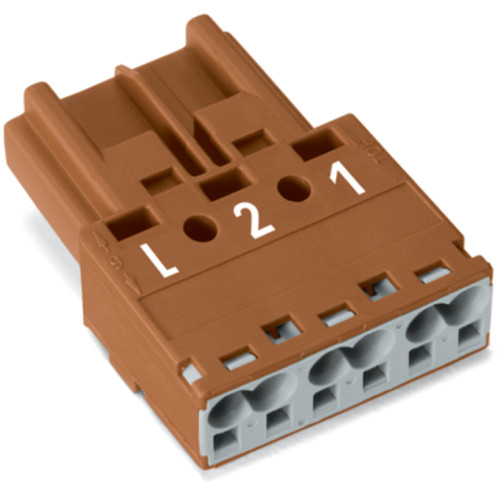

Plug, 3-pole, brown

Manufacturer's No: 770-1373     Manufacturer: WAGO
Plug, 3-pole, brown

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£1.96
  • Plug type: 3-pole
  • Wire size: 4.00 mm²
  • Color: Brown


Product

Manufacturer Material ID -
770-1373
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
100
UNSPSC -
39121402

Technical Specification

Cable diameter -
- Millimetre
Pole codification -
UN
Locking mechanism -
Separate
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Colour coding/contact insert -
Brown
Connection cross section (fine-strand) -
0.5 Square millimetre
Connection cross section (solid-core) -
0.5 Square millimetre
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.05306 Kilowatthour
Height -
12.9 Millimetre
Housing material -
Polyamide (PA)
Length -
37.5 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Plug
Number of connections per pole -
2
Number of poles -
3
Pollution degree -
3
Rated current -
25 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Surface finish contacts -
Tinned
Type of locking -
Separate
Width -
30 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£1.96
