770-1714

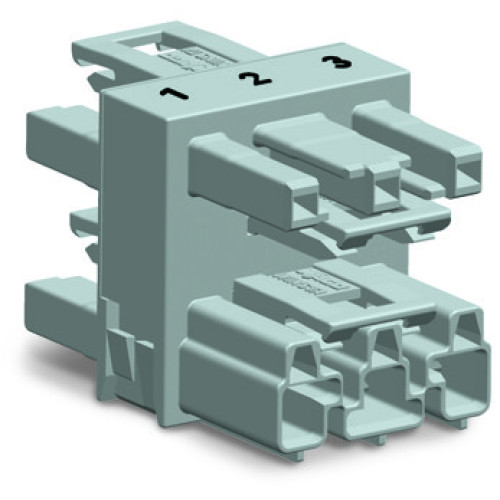

3-way distribution connector, 3-pole, Cod. B, gray

Manufacturer's No: 770-1714     Manufacturer: WAGO
3-way distribution connector, 3-pole, Cod. B, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£6.97
  • 3-way distribution connector
  • 3-pole
  • Cod. B
  • 1 input
  • 3 outputs
  • Color: gray


Product

Manufacturer Material ID -
770-1714
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Phase pickup -
UN
Locking mechanism -
None
Material housing -
Polyamide (PA)
Continuity resistor -
0.5 Milli-Ohm
Degree of protection (IP) -
IP20
Colour coding/contact insert -
Grey
Colour of the separate adapter piece -
Without adapter piece
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.12639 Kilowatthour
Halogen free -
Height -
32.7 Millimetre
Housing material -
Polyamide (PA)
Length -
46 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Mounting possibility -
With separate adapter
Number of inputs -
3
Number of outputs -
9
Number of poles -
3
Pole codification -
1, 2, 3
Pollution degree -
3
Rated current -
25 Ampere
Rated current to luminaire -
25 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Surface finish contacts -
Tinned
Type of distributor -
Distribution terminal block
Type of integrated switching -
None
Type of locking -
None
Width -
30 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£6.97
