770-428

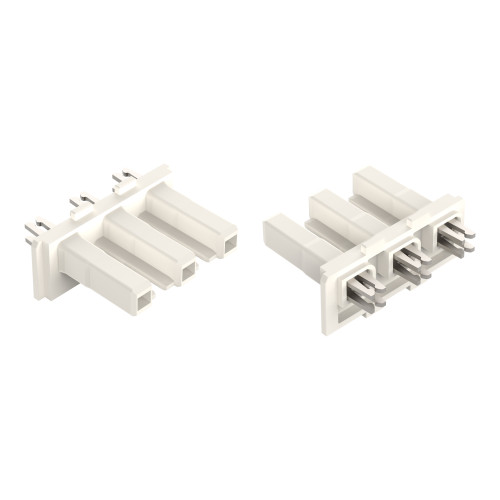

Device connector, 3-pole, Cod. A, white

Manufacturer's No: 770-428     Manufacturer: WAGO
Device connector, 3-pole, Cod. A, white

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • Connector type: 3-pole
  • Color: White
  • Product code: A


Product

Manufacturer Material ID -
770-428
Net Weight -
0.46kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Connection cross section (fine-strand) -
- Square millimetre
Connection cross section (solid-core) -
- Square millimetre
Wall thickness housing -
- Millimetre
Colour housing -
White
Locking mechanism -
Integrated in plug-in connector
Material housing -
Polyamide (PA)
Continuity resistor -
0.5 Milli-Ohm
Degree of protection (IP) -
IP20
Pole codification -
L, N, PE
Colour coding/contact insert -
White
Angle of inclination -
0 Degrees
Angle of plug -
Straight
Built-in version -
Built-in part/plug-in connection
Colour of the separate adapter piece -
Without adapter piece
Connection size thread -
No thread connection
Connection type -
Spring clamp connection
Contact material -
Other
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.01611 Kilowatthour
Halogen free -
Height -
11.65 Millimetre
Housing colour -
White
Housing material -
Polyamide (PA)
Length -
21 Millimetre
Length soldering pin -
5 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Bus
Number of connections per pole -
1
Number of poles -
3
Pollution degree -
3
Rated current -
25 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Surface finish contacts -
Tinned
Type of locking -
Integrated in plug-in connector
Width -
31.1 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
