770-7502

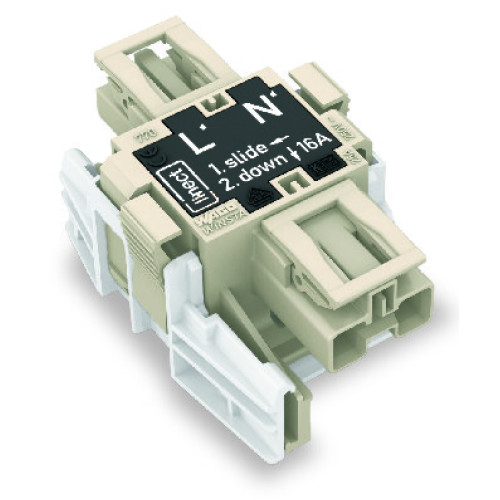

Linect® T-connector, 2-pole, Cod. L, white

Manufacturer's No: 770-7502     Manufacturer: WAGO
Linect® T-connector, 2-pole, Cod. L, white

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£4.26
  • Linect® T-connector
  • 2-pole
  • Cod. L
  • 1 input, 2 outputs
  • Color: white


Product

Manufacturer Material ID -
770-7502
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
25
UNSPSC -
39121402

Technical Specification

Model -
UN
Pole codification -
UN
Connection cross section (fine-strand) -
- Square millimetre
Connection cross section (solid-core) -
- Square millimetre
Length soldering pin -
- Millimetre
Wall thickness housing -
- Millimetre
Colour housing -
White
Locking mechanism -
Integrated in plug-in connector
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP12
Colour coding/contact insert -
Grey
Angle of inclination -
0 Degrees
Angle of plug -
Straight
Built-in version -
Built-in part/plug-in connection
Colour of the separate adapter piece -
Without adapter piece
Connection size thread -
No thread connection
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP12
Fire load -
0.13278 Kilowatthour
Halogen free -
Height -
39.4 Millimetre
Housing colour -
White
Housing material -
Polyamide (PA)
Length -
56.6 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Number of connections per pole -
2
Number of poles -
2
Pollution degree -
3
Rated current -
25 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Surface finish contacts -
Tinned
Type of locking -
Integrated in plug-in connector
Width -
40.5 Millimetre
