770-873/011-000/071-000

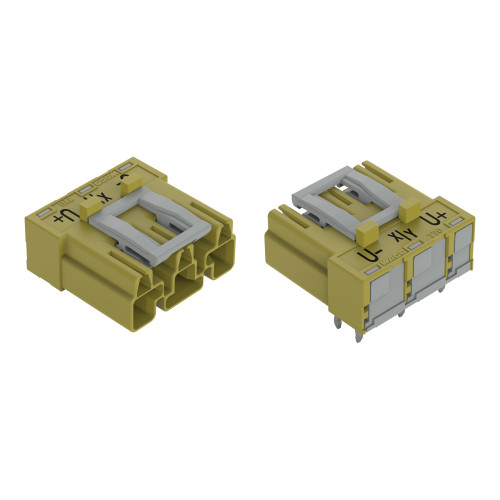

Plug for PCBs, angled, 3-pole, Cod. B, light green

Manufacturer's No: 770-873/011-000/071-000     Manufacturer: WAGO
Plug for PCBs, angled, 3-pole, Cod. B, light green

Availability Back Order

POA
  • Plug for PCBs
  • Angled design
  • 3-pole configuration
  • Cod. B model
  • Light green color

Accessories

Lockout cap, for plugs, 5-pole, separable, yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-360
Price £0.68
Back Order

Coding pin, for plugs, Plastic, gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-401
Price £0.08
Back Order


Product

Manufacturer Material ID -
770-873/011-000/071-000
Net Weight -
0.73kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Connection type -
UN
Cable diameter -
- Millimetre
Pole codification -
UN
Fire load -
- Kilowatthour
Connection cross section (fine-strand) -
- Square millimetre
Connection cross section (solid-core) -
- Square millimetre
Width -
27 Millimetre
Model -
Plug
Height -
11.7 Millimetre
Locking mechanism -
Integrated in plug-in connector
Rated current -
25 Ampere
Length -
26 Millimetre
Material housing -
Polyamide (PA)
Surface finish contacts -
Other
Mechanical coding -
Continuity resistor -
3 Milli-Ohm
Contact material -
Other
Degree of protection (IP) -
IP20
Number of connections per pole -
1
Colour coding/contact insert -
Green
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Type of connection -
Flexible PCB-connector
Operating temperature -
-35 Degrees celsius
Over voltage category -
III
Angle PCB/contact -
0°/180° (horizontal)
Connector model -
Free connector
Contact type -
Pin
Diameter connection pin -
1.28 Millimetre
Housing colour -
Green
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
3.5 Millimetre
Material insulation body -
Polyamide (PA)
Material of contact surface -
Tin
Modular spacing connections -
10 Millimetre
Modular spacing contacts -
10 Millimetre
Number of plug-in contact rows -
1
Number of poles -
3
Pollution degree -
3
Rated current In -
25 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Type of banding -
None
Type of electric connection -
Soldering connection
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability Back Order

POA
