770-994

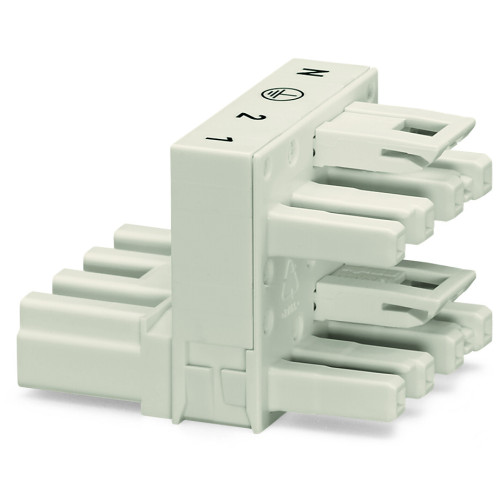

h-distribution connector, 4-pole, Cod. A, white

Manufacturer's No: 770-994     Manufacturer: WAGO
h-distribution connector, 4-pole, Cod. A, white

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£7.35
  • 4-pole h-distribution connector
  • Cod. A
  • 1 input and 2 outputs
  • Outputs located on one side
  • 2 locking levers
  • Color: white


Product

Manufacturer Material ID -
770-994
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
25
UNSPSC -
39121402

Technical Specification

Pole codification -
UN
Phase pickup -
UN
Locking mechanism -
Integrated in plug-in connector
Material housing -
Polyamide (PA)
Continuity resistor -
0.5 Milli-Ohm
Degree of protection (IP) -
IP20
Colour coding/contact insert -
White
Colour of the separate adapter piece -
Without adapter piece
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.14833 Kilowatthour
Halogen free -
Height -
36.7 Millimetre
Housing material -
Polyamide (PA)
Length -
51 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Mounting possibility -
With separate adapter
Number of inputs -
4
Number of outputs -
8
Number of poles -
4
Pollution degree -
3
Rated current -
25 Ampere
Rated current to luminaire -
25 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Surface finish contacts -
Tinned
Type of distributor -
Distribution terminal block
Type of integrated switching -
None
Type of locking -
Integrated in plug-in connector
Width -
30 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£7.35
