771-5001/110-000

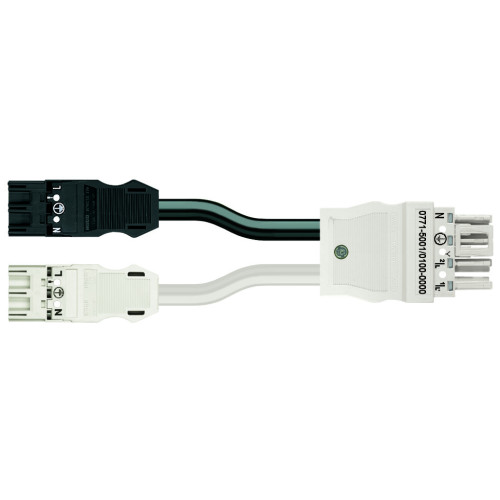

pre-assembled Y-cable, Eca, 2 x plug/socket

Manufacturer's No: 771-5001/110-000     Manufacturer: WAGO
pre-assembled Y-cable, Eca, 2 x plug/socket

Availability On Request

POA
  • Pre-assembled Y-cable
  • Eca rated
  • 2 plugs and sockets
  • 2 cables with 3-pole configuration and 1 cable with 4-pole configuration
  • Cod. A coding
  • Cable type: H05Z1Z1-F
  • Cable size: 3G 1.5 mm²
  • Cable length: 0.6 meters


Product

Manufacturer Material ID -
771-5001/110-000
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Pole codification -
UN
Strip length -
- Millimetre
Dismantle length -
- Millimetre
Nominal cross section conductor -
1.5 Square millimetre
Colour housing -
Multi colour
Locking mechanism -
Separate
Colour outer sheath -
Black
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Conductor end treatment -
Ultrasonic compressed wire ends
Cable diameter -
7.4 Millimetre
Cable permanent temperature-resistant to -
70 Degrees celsius
Cable type -
H05Z1Z1-F
Colour coding/contact insert -
Multi colour
Contact material -
CuSn
Continuity resistance -
3 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
9.999977 Kilowatthour
Halogen free -
Housing colour -
Multi colour
Housing material -
Polyamide (PA)
Insulating piece permanent temperature-resistant -
105 Degrees celsius
Max. operation temperature at conductor -
75 Degrees celsius
Mechanical coding -
Nominal cross sectional area of conductor -
1.5 Square millimetre
Number of poles -
4
Pollution degree -
3
Rated current -
16 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath colour -
Black
Surface finish contacts -
Tinned
Total length -
600 Millimetre
Type of finished cable -
Other
Type of locking -
Separate
Type side 1 -
Plug
Type side 2 -
Bus
