771-5001/296-000

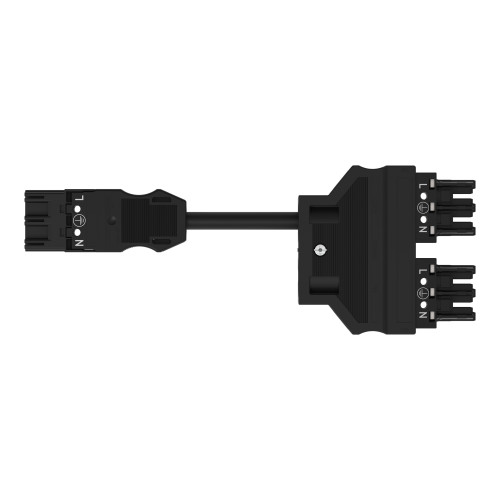

pre-assembled Y-cable, Eca, Cod. A, black

Manufacturer's No: 771-5001/296-000     Manufacturer: WAGO
pre-assembled Y-cable, Eca, Cod. A, black

Availability On Request

POA
  • Pre-assembled Y-cable
  • Type: Eca
  • Cod. A
  • Cable Type: H05VV-F 3G 2.5 mm²
  • Length: 0.5 m
  • Color: Black


Product

Manufacturer Material ID -
771-5001/296-000
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Cable diameter -
9.2 Millimetre
Cable permanent temperature-resistant to -
70 Degrees celsius
Cable type -
H05VV-F
Colour coding/contact insert -
Black
Conductor end treatment -
Ultrasonic compressed wire ends
Contact material -
CuSn
Fire load -
6.216434 Kilowatthour
Housing material -
Polyamide (PA)
Insulating piece permanent temperature-resistant -
105 Degrees celsius
Max. operation temperature at conductor -
75 Degrees celsius
Mechanical coding -
Nominal cross sectional area of conductor -
2.5 Square millimetre
Number of poles -
3
Pollution degree -
3
Rated current -
20 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Reaction-to-fire according to EN 13501-6: Class -
Eca
Surface finish contacts -
Tinned
Total length -
500 Millimetre
Type of finished cable -
Other
Type side 1 -
Plug
Type side 2 -
Bus
