771-8992/005-303

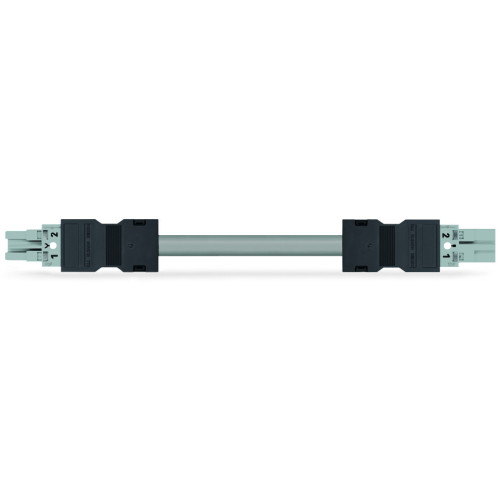

pre-assembled interconnecting cable, Eca, Socket/plug, gray

Manufacturer's No: 771-8992/005-303     Manufacturer: WAGO
pre-assembled interconnecting cable, Eca, Socket/plug, gray

Availability On Request

POA
  • Pre-assembled interconnecting cable
  • Eca rated
  • Socket/plug type
  • 2-pole configuration
  • Control cable with 2 x 1.0 mm² conductors
  • Cable length: 3 meters
  • Conductor size: 1.00 mm²
  • Color: Gray


Product

Manufacturer Material ID -
771-8992/005-303
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Strip length -
- Millimetre
Dismantle length -
- Millimetre
Nominal cross section conductor -
1 Square millimetre
Colour housing -
Black
Locking mechanism -
Separate
Colour outer sheath -
Grey
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Conductor end treatment -
Ultrasonic compressed wire ends
Cable diameter -
5.9 Millimetre
Cable permanent temperature-resistant to -
70 Degrees celsius
Cable type -
Other
Colour coding/contact insert -
Grey
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.21329 Kilowatthour
Housing colour -
Black
Housing material -
Polyamide (PA)
Insulating piece permanent temperature-resistant -
105 Degrees celsius
Max. operation temperature at conductor -
85 Degrees celsius
Mechanical coding -
Nominal cross sectional area of conductor -
1 Square millimetre
Number of poles -
2
Pole codification -
1, 2
Pollution degree -
3
Rated current -
10 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath colour -
Grey
Surface finish contacts -
Tinned
Total length -
3000 Millimetre
Type of finished cable -
Connecting cable
Type of locking -
Separate
Type side 1 -
Bus
Type side 2 -
Plug
