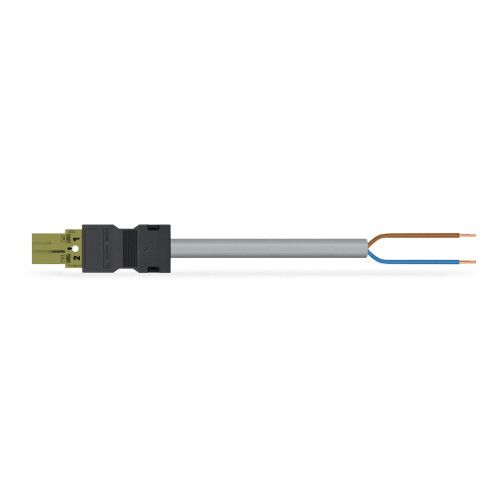

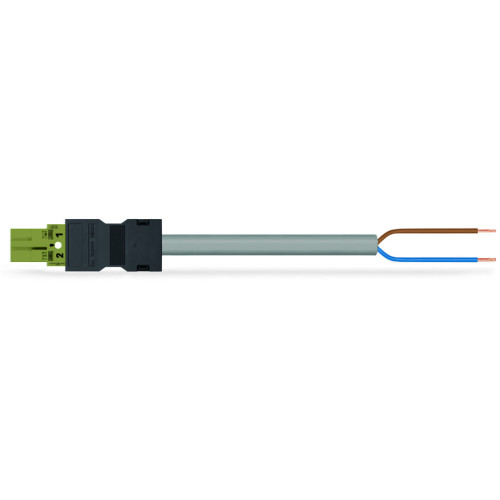

771-8992/205-105

pre-assembled connecting cable, Eca, Plug/open-ended, 2-pole, Cod. B, Control cable 2 x 1.0 mm, 1 m,

Manufacturer's No: 771-8992/205-105     Manufacturer: WAGO
pre-assembled connecting cable, Eca, Plug/open-ended, 2-pole, Cod. B, Control cable 2 x 1.0 mm, 1 m,

Availability Back Order

POA
  • Pre-assembled connecting cable
  • Type: Eca
  • Configuration: Plug/open-ended
  • Number of poles: 2
  • Control cable: 2 x 1.0 mm²
  • Length: 1 meter
  • Wire diameter: 1.00 mm²
  • Color: Light green

Accessories

Locking lever, for flying leads, for manual operation, black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-101
Price £0.16
Back Order

Locking lever, for flying leads, for manual operation, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-121
Price £0.16
Back Order

Locking lever, for flying leads, for tool operation, black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-111
Price £0.16
Back Order

Locking lever, for flying leads, for tool operation, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-131
Price £0.16
Back Order

Lockout cap, for plugs, 5-pole, separable, yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-360
Price £0.68
Back Order


Product

Manufacturer Material ID -
771-8992/205-105
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Nominal cross section conductor -
1 Square millimetre
Colour housing -
Black
Locking mechanism -
Separate
Colour outer sheath -
Green
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Cable diameter -
5.9 Millimetre
Cable permanent temperature-resistant to -
70 Degrees celsius
Cable type -
Other
Colour coding/contact insert -
Green
Conductor end treatment -
Ultrasonic compressed wire ends
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Dismantle length -
35 Millimetre
Fire load -
0.108861 Kilowatthour
Housing colour -
Black
Housing material -
Polyamide (PA)
Insulating piece permanent temperature-resistant -
105 Degrees celsius
Max. operation temperature at conductor -
85 Degrees celsius
Mechanical coding -
Nominal cross sectional area of conductor -
1 Square millimetre
Number of poles -
2
Pole codification -
1, 2
Pollution degree -
3
Rated current -
10 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath colour -
Grey
Strip length -
9 Millimetre
Surface finish contacts -
Tinned
Total length -
1000 Millimetre
Type of finished cable -
Other
Type of locking -
Separate
Type side 1 -
Plug
Type side 2 -
Free conductor end

Availability Back Order

POA
