771-9385/267-702

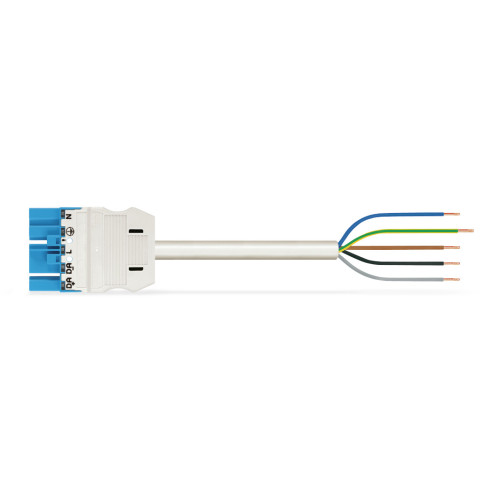

pre-assembled connecting cable, Cca, Plug/open-ended, 5-pole, Cod. I, H05Z1Z1-F 5G 2.5 mm, 7 m, 2, 50

Manufacturer's No: 771-9385/267-702     Manufacturer: WAGO
pre-assembled connecting cable, Cca, Plug/open-ended, 5-pole, Cod. I, H05Z1Z1-F 5G 2.5 mm, 7 m, 2, 50

Availability Back Order

POA
  • Pre-assembled connecting cable
  • CCA material
  • 5-pole plug/open-ended
  • Cable type: H05Z1Z1-F 5G 2.5 mm²
  • Length: 7 meters
  • Wire gauge: 2.50 mm²
  • Color: Blue

Accessories

Locking lever, for flying leads, for manual operation, black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-101
Price £0.16
Back Order

Locking lever, for flying leads, for manual operation, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-121
Price £0.16
Back Order

Locking lever, for flying leads, for tool operation, black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-111
Price £0.16
Back Order

Locking lever, for flying leads, for tool operation, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-131
Price £0.16
Back Order

Marker Card, For Manual Marking White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-450
Price £0.66
Back Order

Lockout cap, for plugs, 5-pole, separable, yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-360
Price £0.68
Back Order


Product

Manufacturer Material ID -
771-9385/267-702
Net Weight -
1.73kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Pole codification -
UN
Nominal cross section conductor -
2.5 Square millimetre
Colour housing -
White
Locking mechanism -
Separate
Colour outer sheath -
White
Continuity resistor -
1 Milli-Ohm
Degree of protection (IP) -
IP20
Cable diameter -
11.2 Millimetre
Cable permanent temperature-resistant to -
70 Degrees celsius
Cable type -
H05Z1Z1-F
Colour coding/contact insert -
Blue
Conductor end treatment -
Ultrasonic compressed wire ends
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Dismantle length -
55 Millimetre
Fire load -
0.170078 Kilowatthour
Halogen free -
Housing colour -
White
Housing material -
Polyamide (PA)
Insulating piece permanent temperature-resistant -
105 Degrees celsius
Max. operation temperature at conductor -
85 Degrees celsius
Mechanical coding -
Nominal cross sectional area of conductor -
2.5 Square millimetre
Number of poles -
5
Pollution degree -
3
Rated current -
20 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Reaction-to-fire according to EN 13501-6: Class -
Cca
Sheath colour -
White
Strip length -
9 Millimetre
Surface finish contacts -
Tinned
Total length -
7000 Millimetre
Type of finished cable -
Other
Type of locking -
Separate
Type side 1 -
Plug
Type side 2 -
Free conductor end

Availability Back Order

POA
