771-9993/206-405

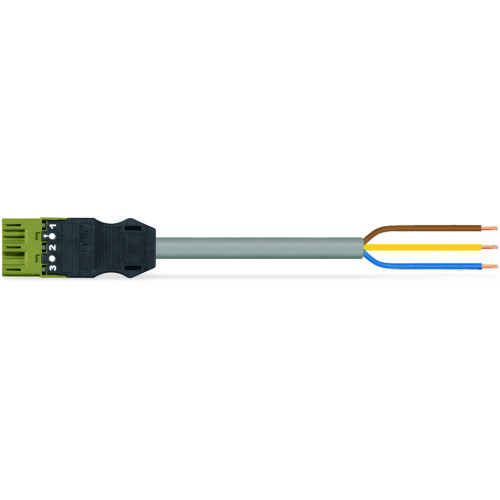

pre-assembled connecting cable, Eca, Plug/open-ended, light green

Manufacturer's No: 771-9993/206-405     Manufacturer: WAGO
pre-assembled connecting cable, Eca, Plug/open-ended, light green

Availability On Request

POA
  • Pre-assembled connecting cable
  • Type: Eca
  • Configuration: Plug/open-ended, 3-pole
  • Cable Cod. B
  • Cable Type: H05VV-F
  • Cable Size: 3 x 1.5 mm²
  • Length: 4 meters
  • Wire Size: 1.5 mm²
  • Color: Light green


Product

Manufacturer Material ID -
771-9993/206-405
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Nominal cross section conductor -
1.5 Square millimetre
Colour housing -
Black
Locking mechanism -
Separate
Colour outer sheath -
Green
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Cable diameter -
7.4 Millimetre
Cable permanent temperature-resistant to -
70 Degrees celsius
Cable type -
H05VV-F
Colour coding/contact insert -
Green
Conductor end treatment -
Ultrasonic compressed wire ends
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Dismantle length -
55 Millimetre
Fire load -
0.090856 Kilowatthour
Housing colour -
Black
Housing material -
Polyamide (PA)
Insulating piece permanent temperature-resistant -
105 Degrees celsius
Max. operation temperature at conductor -
85 Degrees celsius
Mechanical coding -
Nominal cross sectional area of conductor -
1.5 Square millimetre
Number of poles -
3
Pole codification -
1, 2, 3
Pollution degree -
3
Rated current -
16 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath colour -
Grey
Strip length -
9 Millimetre
Surface finish contacts -
Tinned
Total length -
4000 Millimetre
Type of finished cable -
Other
Type of locking -
Separate
Type side 1 -
Plug
Type side 2 -
Free conductor end

Availability On Request

POA
